Description
120/240V MIG and flux cored welder. Welds up to 3/8" steel and aluminum. Featuring advanced technologies like USB-enabled updates, Auto-Set™, higher duty cycle, 15’ MIG gun, and dinse connections—built to keep you welding all day, every day.
CLICK HERE TO DOWNLOAD SPEC SHEET

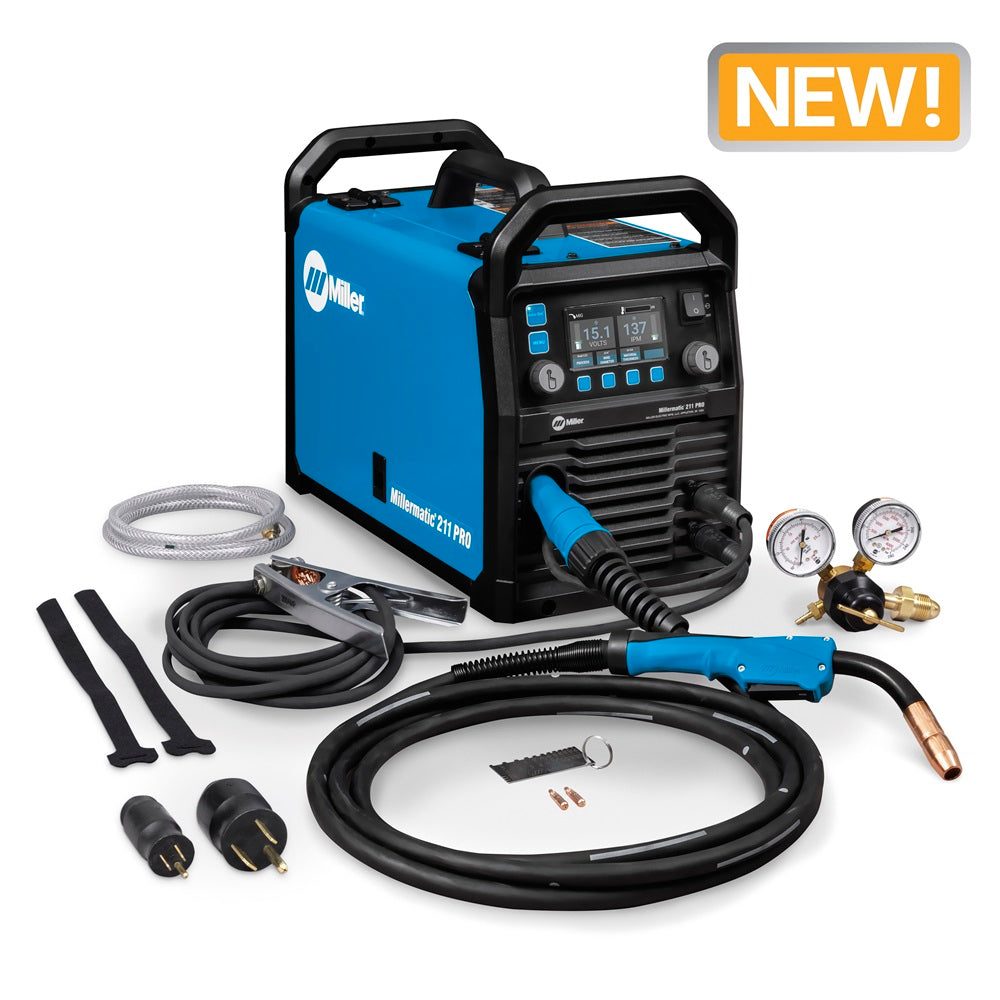

Includes
Millermatic 211 PRO
15 ft. (4.6 m) MDX™-100 MIG gun
15 ft (4.6 m) Work cable with clamp
6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
Argon and AR/CO2 mix regulator/flow gauge with hose
Two contact tips for .030 in (0.8 mm) wire
Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
Material thickness gauge #229895
Hook-and-loop cord wraps
FEATURES
Auto-Set™ Technology
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
USB Port
Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
Smooth-Start™
This technology provides a smooth, spatter-free start. No more pop-gun starts or spatter to clean up.

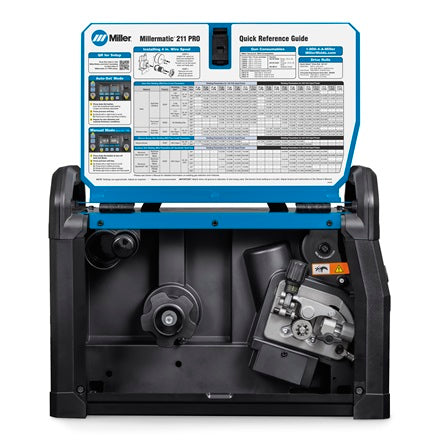

Angled Drive System with Quick Select™ Drive Roll
Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
Quick Select™ Drive Roll
Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
Multi-voltage plug (MVP™)
Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.
Inverter Technology
Inverter technology combines best-in-class arc characteristics with the portability of a 35-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
Auto Spool Gun Detect™
Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
Generator Compatible
Will be able to operate and provide full output when powered by an engine-driven welder with 7000 Watt (7K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.

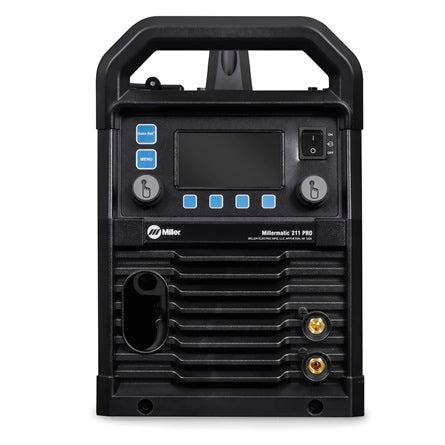

Easy-to-understand interface
7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
Weld Longer
Higher duty cycle, a 15-foot MIG gun and dinse connections mean fewer interruptions.
Processes
Flux Cored (FCAW)
MIG (GMAW)
Technologies
Auto-Set
General Specifications
| Title | Millermatic® 211 PRO |
|---|---|
| Applications | Automotive Welding Car Restoration Fabrication Garage/Shop Mobile Fabrication & MRO Welding Projects |
| Industries | Auto Repair Construction & Fabrication Manufacturing Racing, Customizing & Restoring |
| Amperage | 30 A - 230 A |
| Material Thickness | Aluminum 18 ga. (1.2 mm) - 3/8 in. (9.5 mm) Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | DC |
| Rated Output | 120V: 110 A at 19.5 VDC, 60% duty cycle 240V: 160 A at 22.0 VDC, 60% duty cycle |
| Max Open Circuit Voltage | 57 VDC |
| Wire Feed Speed | 1.5 m/min - 15.2 m/min 60 m/min - 600 m/min |
| Wire Diameter | Stainless 0.024 in. - 0.035 in. Stainless 0.6 mm. - 0.9 mm. Solid Steel 0.6 mm. - 0.9 mm. Solid Steel 0.024 in. - 0.035 in. Flux Cored 0.03 in. - 0.035 in. Flux Cored 0.8 mm. - 0.9 mm. |
| Spool Size | 4-inch or 8-inch (102 mm or 203 mm) |

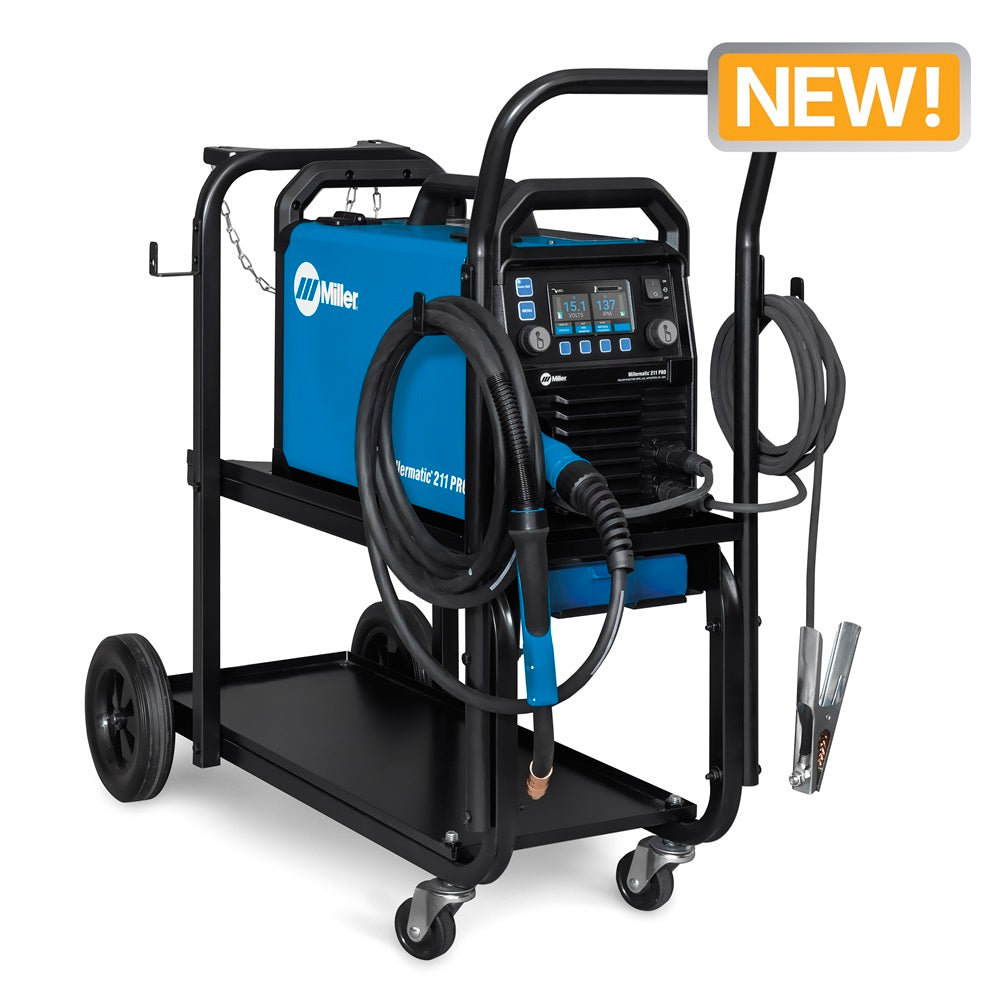

| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CV |
| Input Voltage | 120/240 V |
| Input Phase | 1-Phase |
| Net Width | 9.75 in |
| Net Height | 14.625 in |
| Net Length | 20 in |
| Net Weight | 35 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
