Description
Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.
CLICK HERE TO DOWNLOAD SPEC SHEET
FEATURES
Easy to Use
Digital interface speeds machine setup and makes it less complicated.
Exceptional Arc Performance
Easy arc starts and less spatter.
Easy Maintenance
With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
Easier mobility and uses less truck space and payload
Over 80 pounds lighter and 13 percent smaller than previous models.
Auto-Speed™ technology
Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
Separate weld and auxiliary power
Full auxiliary power at any setting.
ArcReach® Technology
ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
QuietPulse™
QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
Dynamic DIG™
Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
Processes
Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
TIG DC (GTAW-DC)
Technologies
ArcReach
Dynamic DIG
EFI
GFCI
General Specifications

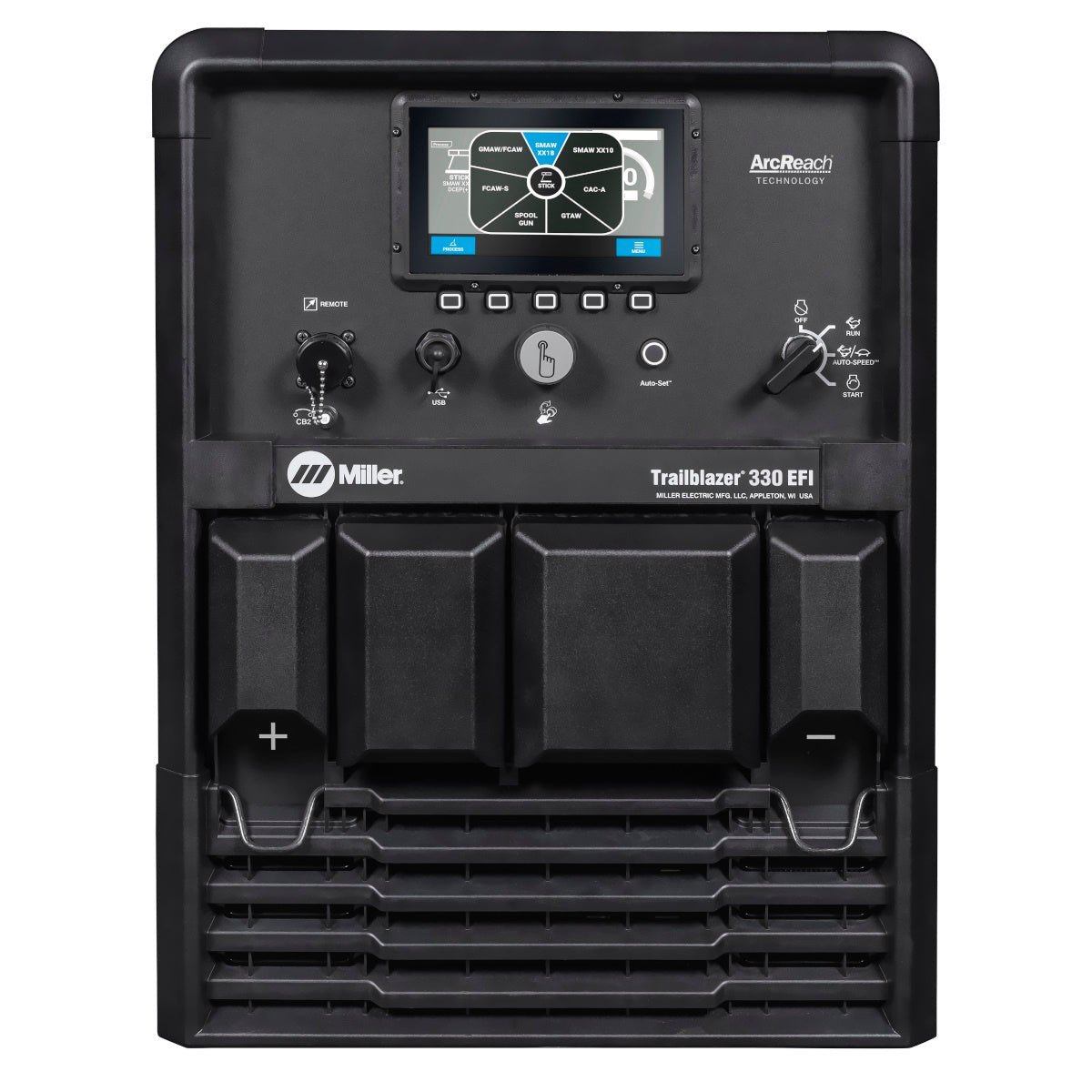

| Title | Trailblazer® 330 (Kohler) EFI |
|---|---|
| Applications | Aluminum Welding Fabrication Mobile Fabrication & MRO Structural Welding |
| Industries | Construction and Fabrication Heavy Equipment |
| Amperage | 20 A - 330 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 1/4 in (6.4 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 107 VDC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Engine Brand | Kohler |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 23 hp |
| Weld Output | CC / CV |
| Rated Output | CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 10500 W |
| Single Phase Auxiliary Peak Power | 12000 W |
| Sound Rating | 65 dB @ idle and 73.5 dB @ max weld |
| Warranty | 3 Years Miller's True Blue Warranty |
