Description

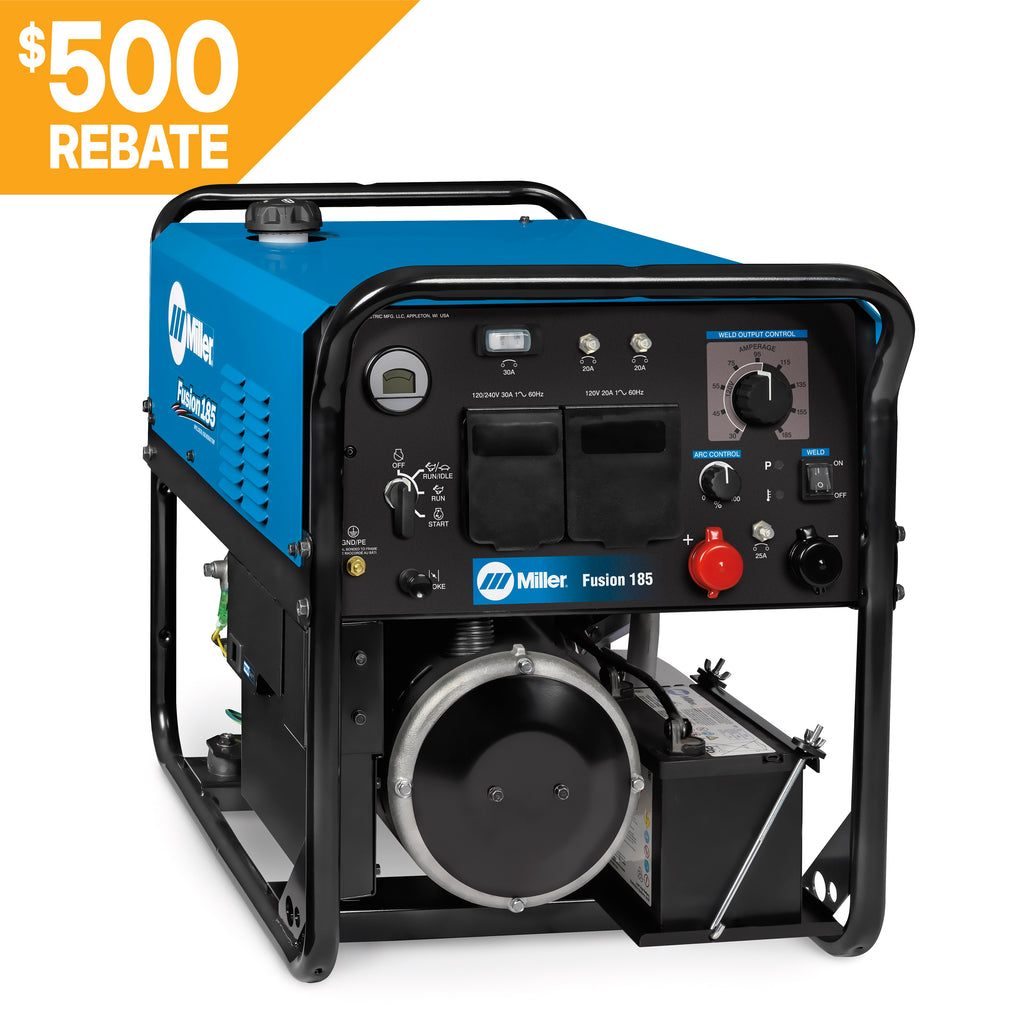

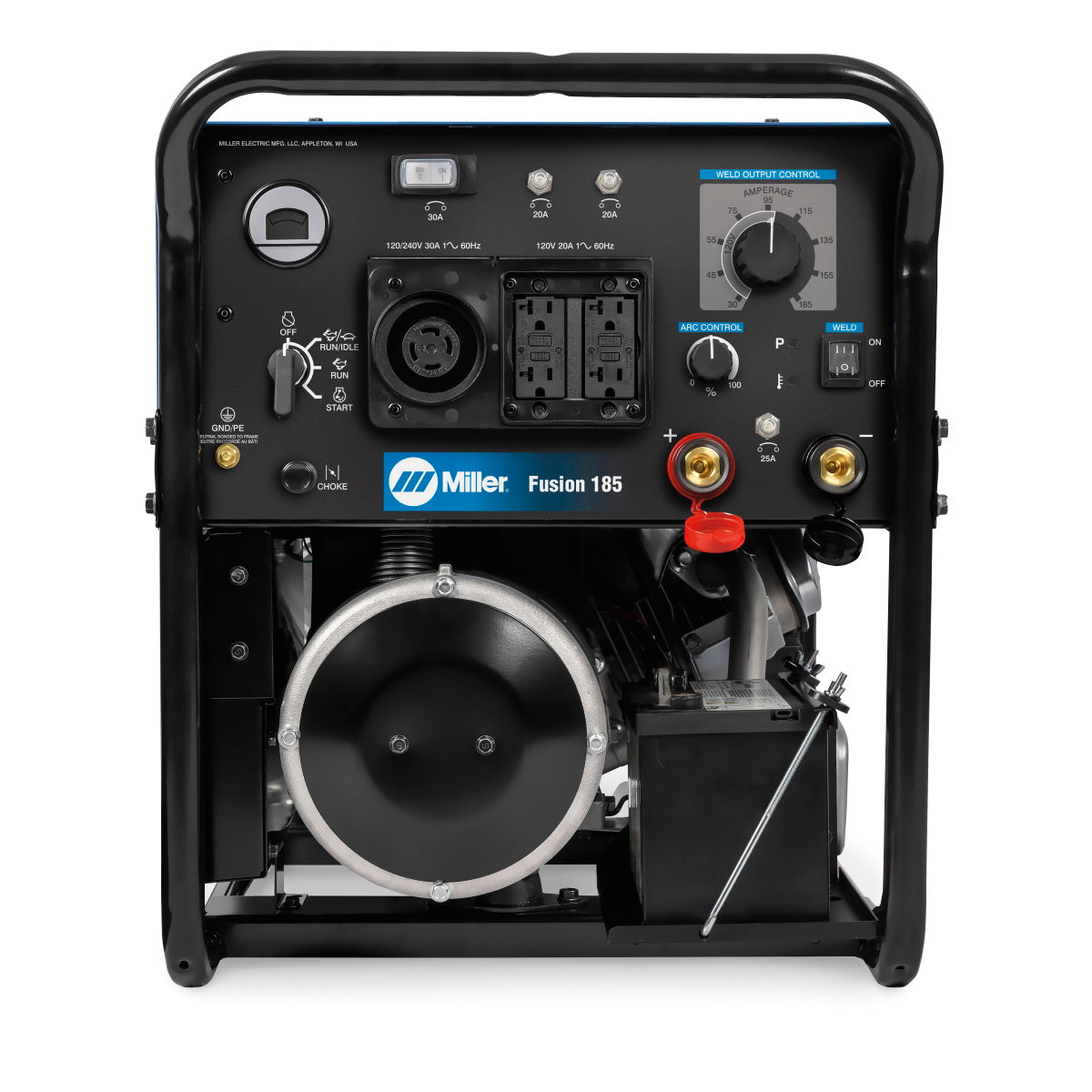

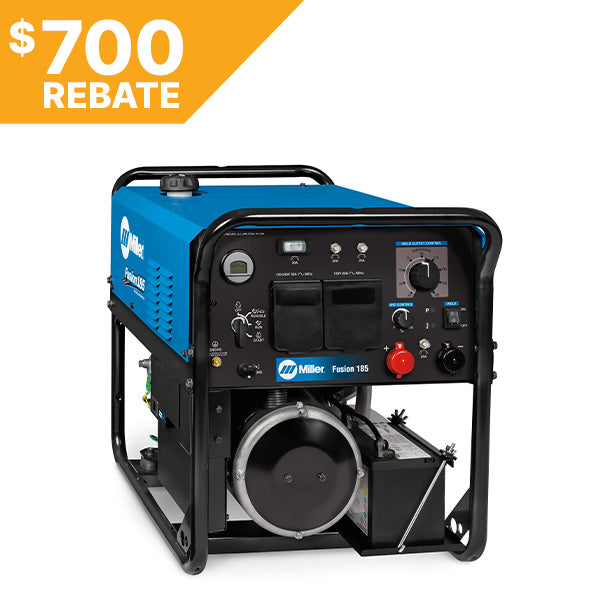

The Fusion 185 delivers a smooth, stable arc with PowerShift technology utilizing either engine power or 120/240-volt utility power, providing a unique combination of versatility and productivity in a lightweight package.
FEATURES
Easier to transport
The Fusion engine-driven welder weighs 242 pounds. That’s up to 50 pounds less than similar machines, so moving the Fusion is easier and faster. Less time is spent waiting and more work can get done.
Less rework
Uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed, so it’s easier to produce clean welds that meet specifications and avoid the time and expense of rework.
Work-anywhere convenience
PowerShift technology provides weld capabilities using either the Fusion engine or 120/240-volt utility power. You’ll have the confidence of knowing that you can weld virtually anywhere - outdoors and indoors - with just one machine.
MVP
The multi-voltage plug (MVP) make it easy to connect the welder to either 120- or 240-volt power.
Processes
Stick (SMAW)
TIG DC (GTAW-DC)
General Specifications
| Title | Fusion 185 |
|---|---|
| Applications | Mobile Fabrication & MRO Work Truck |
| Industries | Farm and Ranch Construction and Fabrication |
| Amperage | 30 A - 185 A |
| Weldable Metals | Stainless Steel Steel |
| Current Type | DC |
| Portability | Lift Eye (Optional) Running Gear / Cart (Optional) |
| Engine Brand | Kohler |
| Engine Idle Speed | 2500 RPM |
| Engine Weld Speed | 3,600 |
| Fuel Tank Size | 6.25 gal. (23.7 L) |
| Fuel Type | Gasoline |
| Horsepower | 13.4 hp |
| Weld Output | CC |
| Rated Output | 185 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 6200 W |
| Single Phase Auxiliary Peak Power | 6500 W |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Net Width | 20.625 in |
| Net Height | 24.75 in |
| Net Length | 31.25 in |
| Net Weight | 242 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
