Description
Reliable, simple engine-driven welders great for stick welding and pivot irrigation systems with 480-volt three-phase power. Designed for maintenance/repair operations, farm, ranch and auxiliary power use.
CLICK HERE TO DOWNLOAD SPEC SHEET

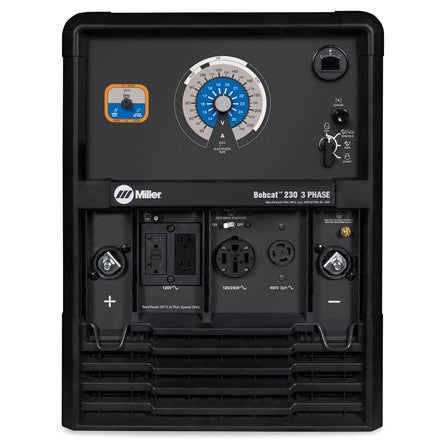

Separate weld and auxiliary power
Full auxiliary power at any setting.
Exceptional Arc Performance
Easy arc starts and less spatter.
Easier mobility and uses less truck space and payload
Over 100 pounds lighter and 13 percent smaller than previous models.
Easy Maintenance
With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
Easy to Use
Digital interface speeds machine setup and makes it less complicated.
Processes
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
Technologies
GFCI
General Specifications
| Title | Bobcat 230 3-Phase |
|---|---|
| Applications | Outdoor |
| Industries | Farm and Ranch |
| Amperage | 20 A - 230 A |
| Weldable Metals | Stainless Steel Steel |
| Current Type | DC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Engine Brand | Kohler |
| Engine Idle Speed | 2300 RPM |
| Engine Weld Speed | 3600 |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 23.5 hp |
| Weld Output | CC/CV |
| Rated Output | CC/DC Stick 230 A at 29.2 V, 100% duty cycle, CV/DC MIG/FCAW 230 A at 25.5 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 8500 W |
| Single Phase Auxiliary Peak Power | 10000 W |
| Sound Rating | 73.1 dB @ max and 72.3 dB @ weld |
| Three Phase Auxiliary Continuous Power | 8500 W |
| Three Phase Auxiliary Peak Power | 10000 W |
| Warranty | 3 Years Miller's True Blue Warranty |
