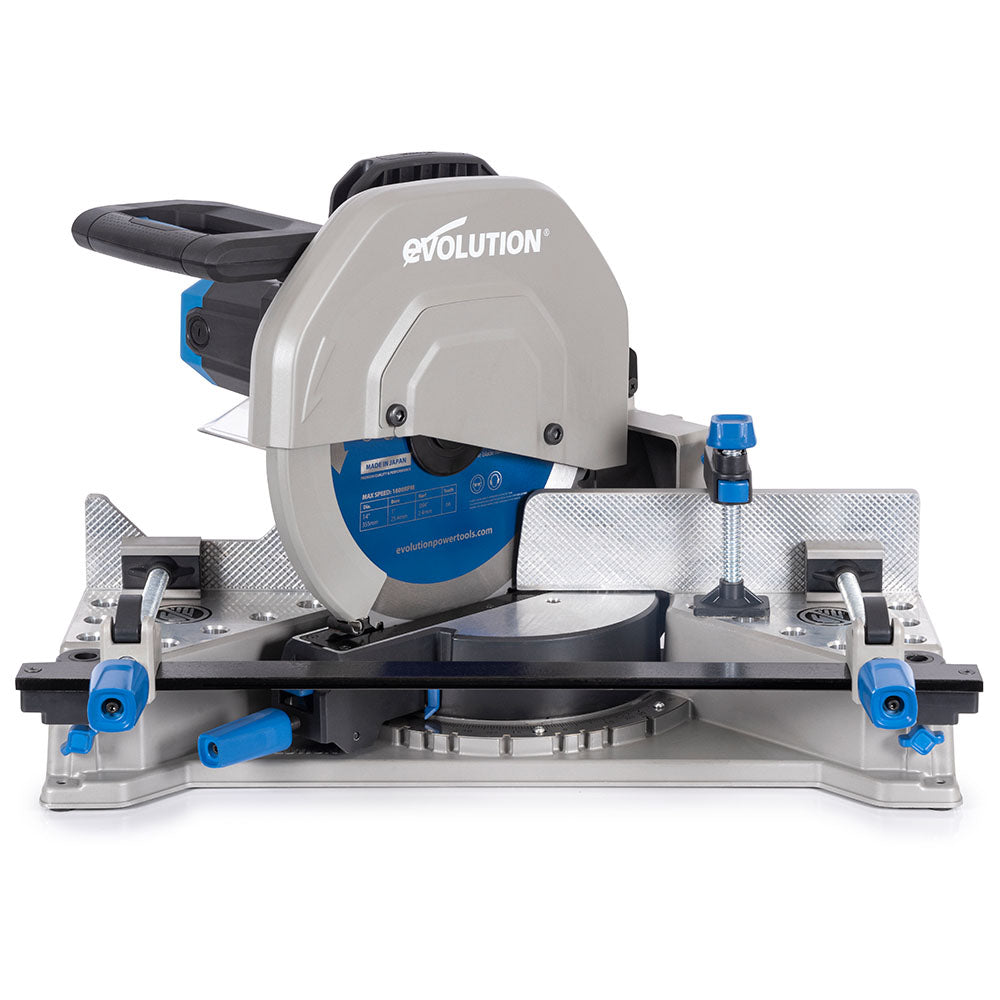

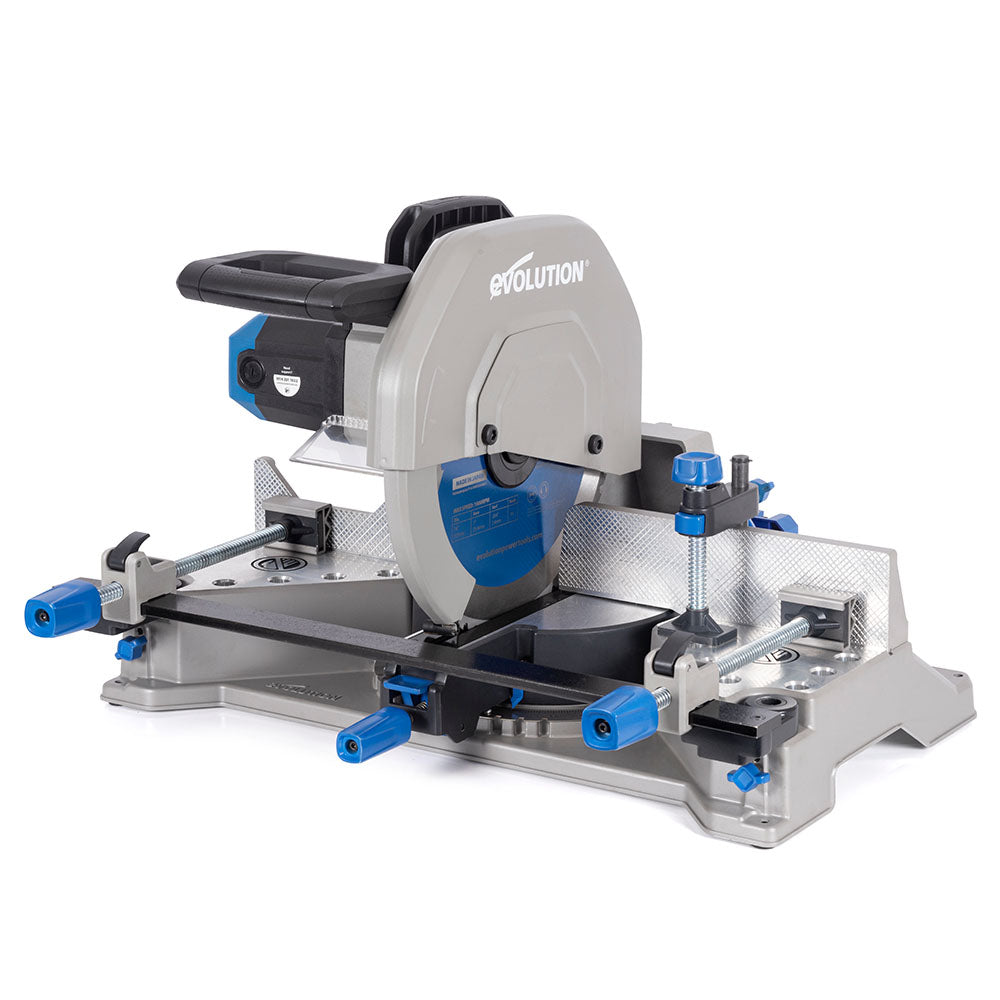

Evolution S355MCS 14" Mitering Chop Saw / Heavy Duty / Metal Cutting


Price:
Sale price$849.00

Description

Built for professionals, the Evolution S355MCS Mitering Chop Saw fis the first 14” TCT industrial Chop Saw that allows you to produce accurate miter cuts without having to reposition the workpiece.

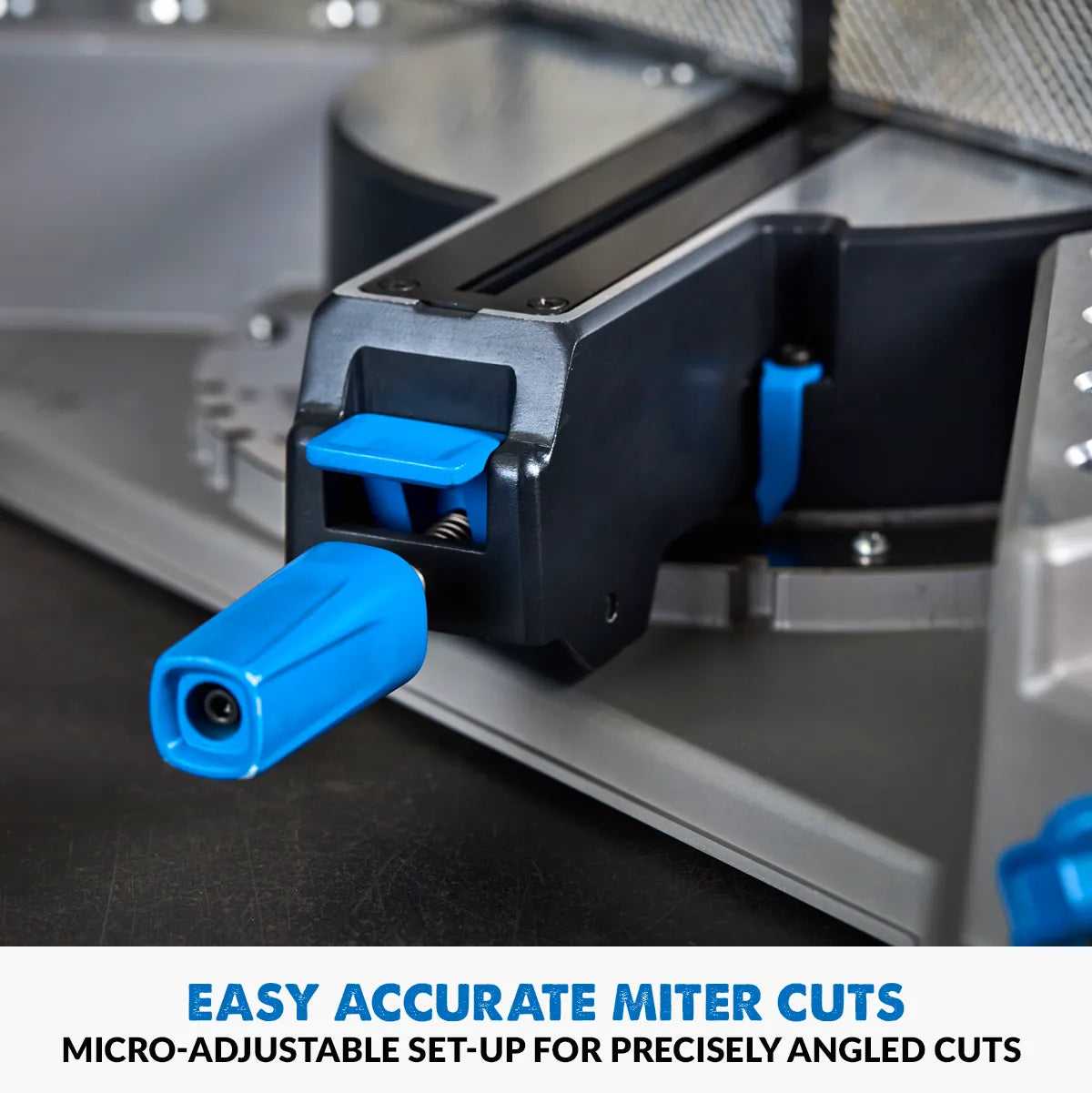

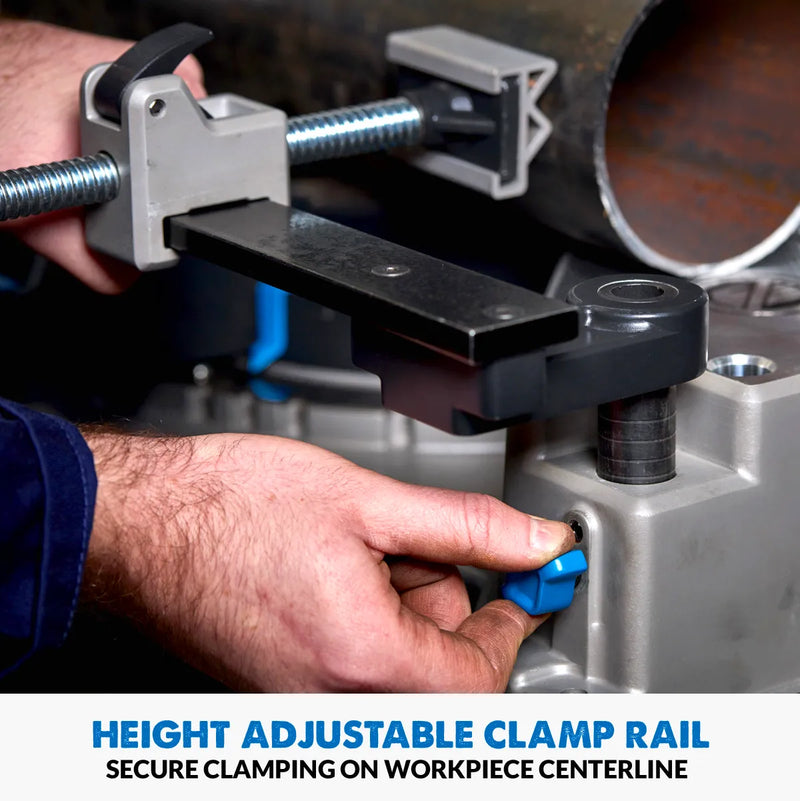

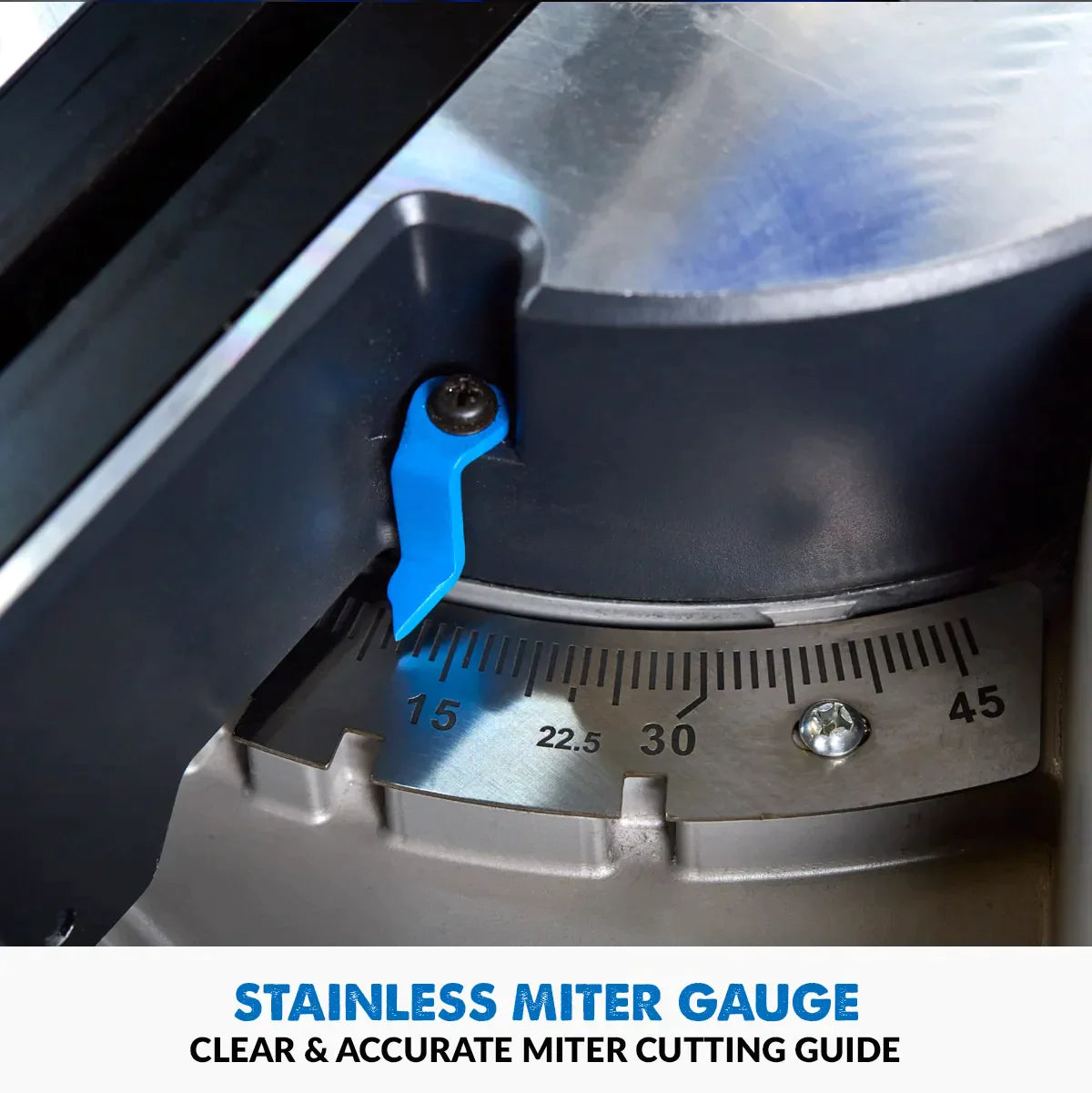

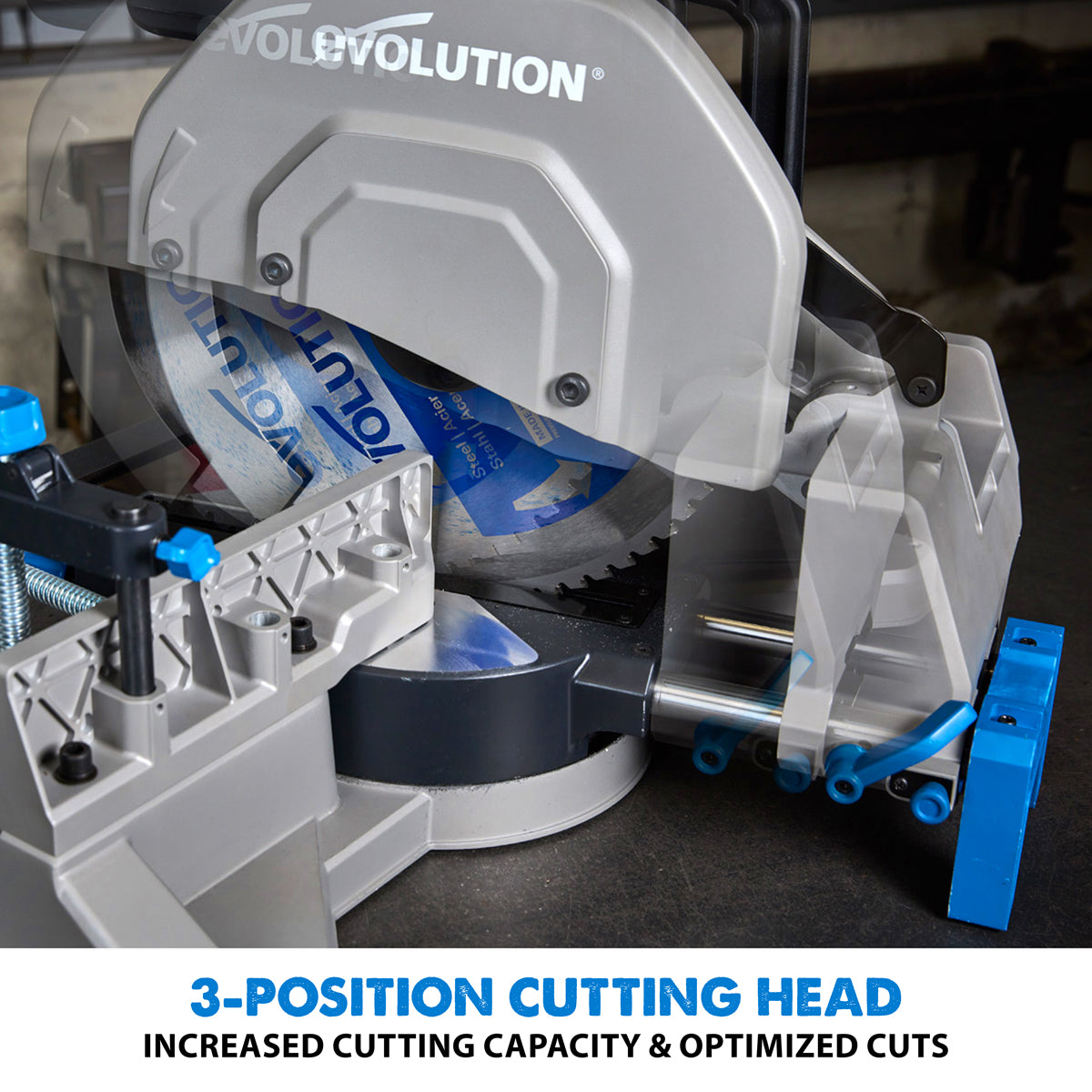

  • Designed to tackle heavy cuts in oversized metal pieces the S355MCS Mitering Chop Saw features a precision adjustable miter table, 3-position saw head, and our unique, height adjustable front clamp rail assembly.
  • It delivers precise and quick angle adjustment for easy set-up and a powerful clamping mechanism to ensure quality, repeatable cuts every time.
  • Powerful 15A motor.

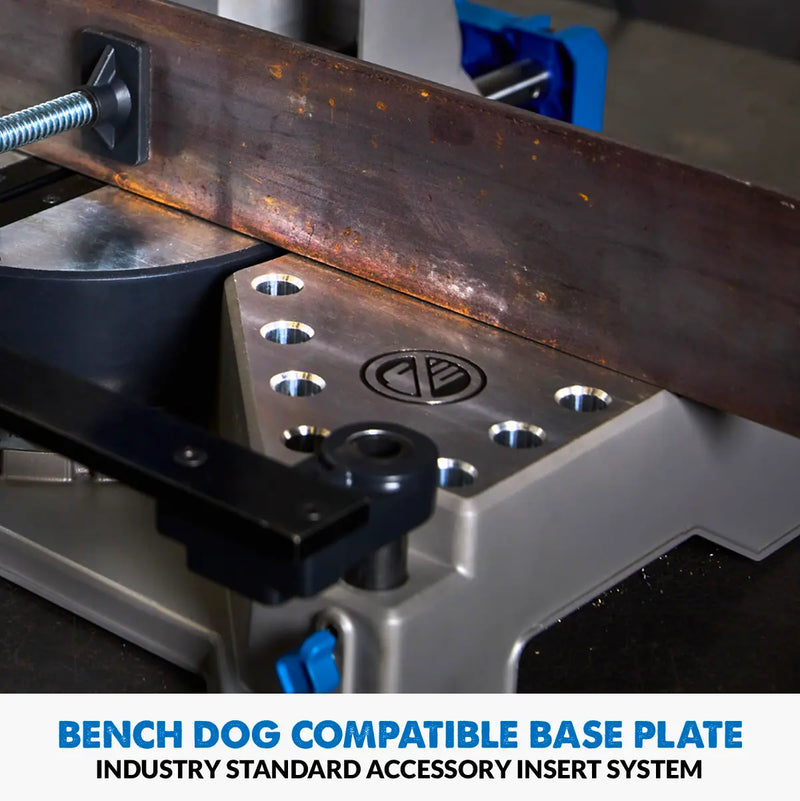

  • Easy ambidextrous controls and a Bench Dog compatible base plate with a tough knurled back fence.
  • the S355MCS Mitering Chop Saw is easy to rely on for your toughest jobs.
Items Included
Instruction Manual

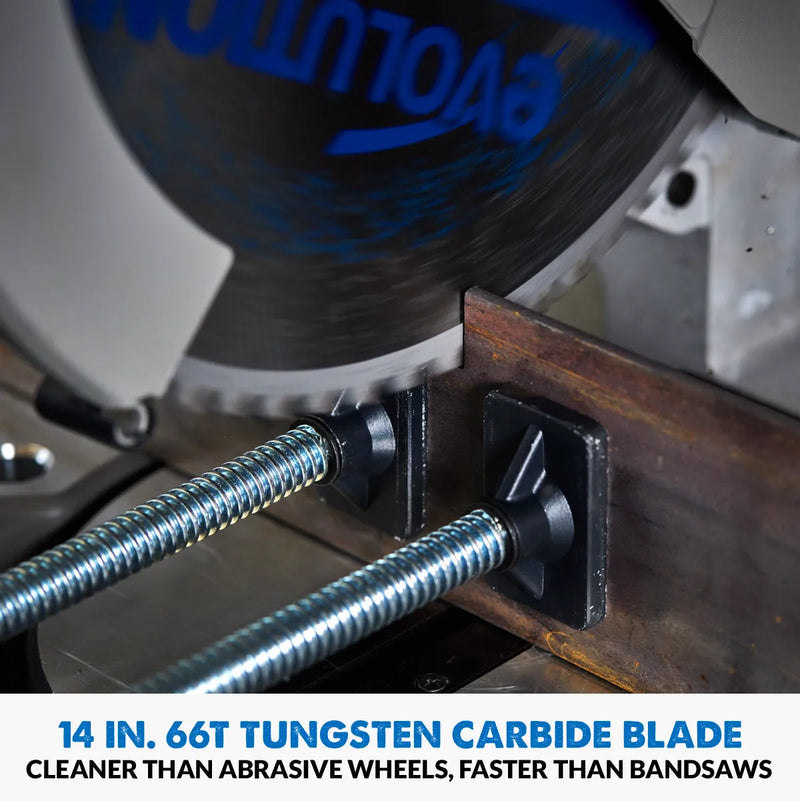

66 Tooth Mild Steel TCT Blade
Double Ended 5mm/8mm Hex Key
Cutting Head Assembly
Base Table Assembly
Rear Stabilising Leg

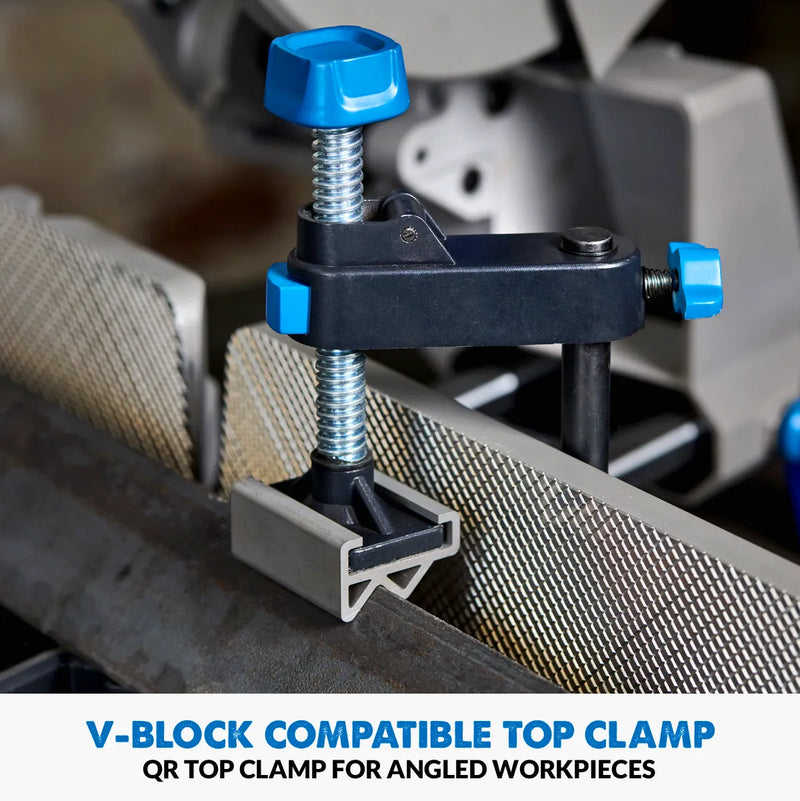

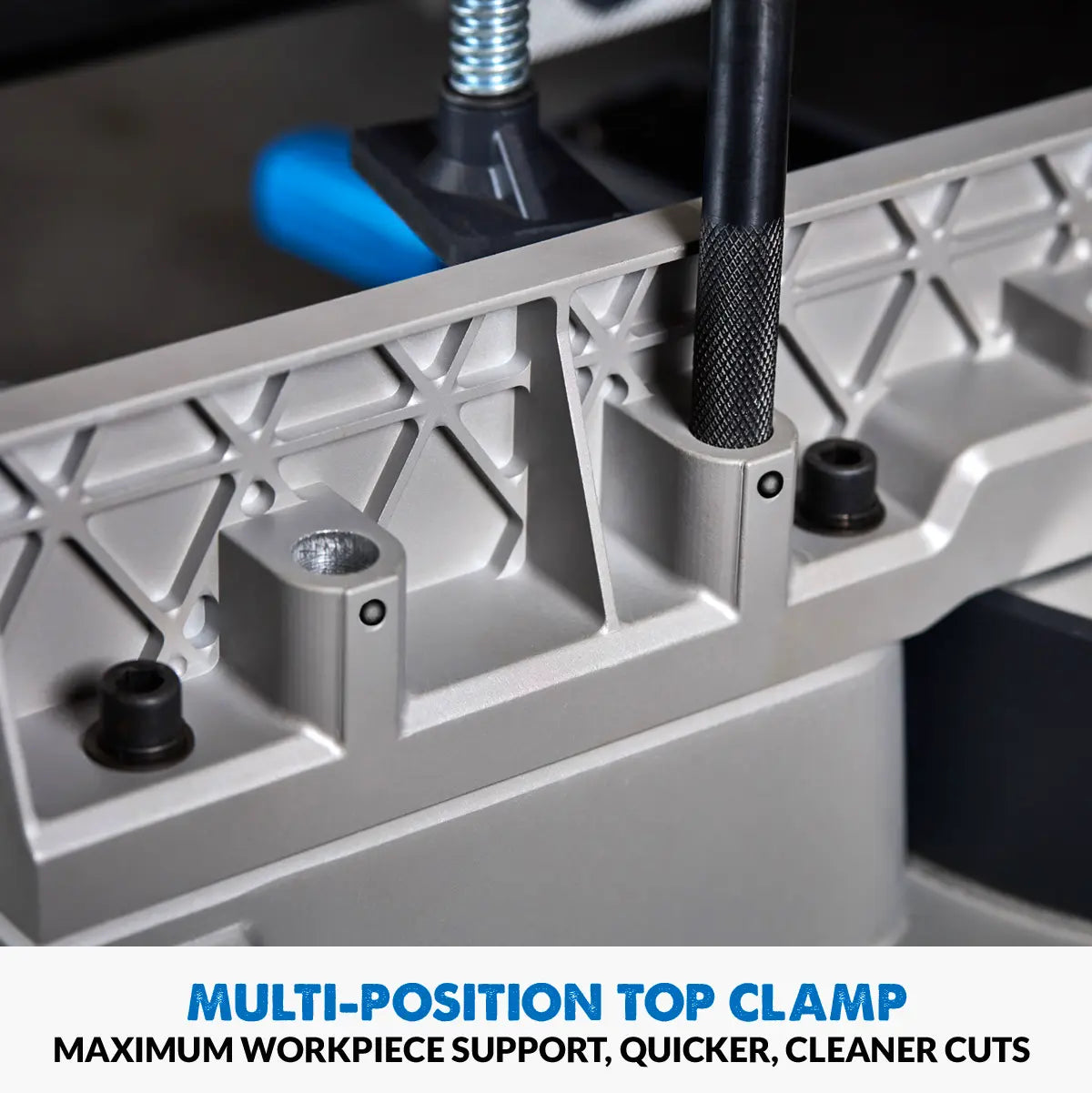

QR Top Clamp
Rail Bracket & Fixings

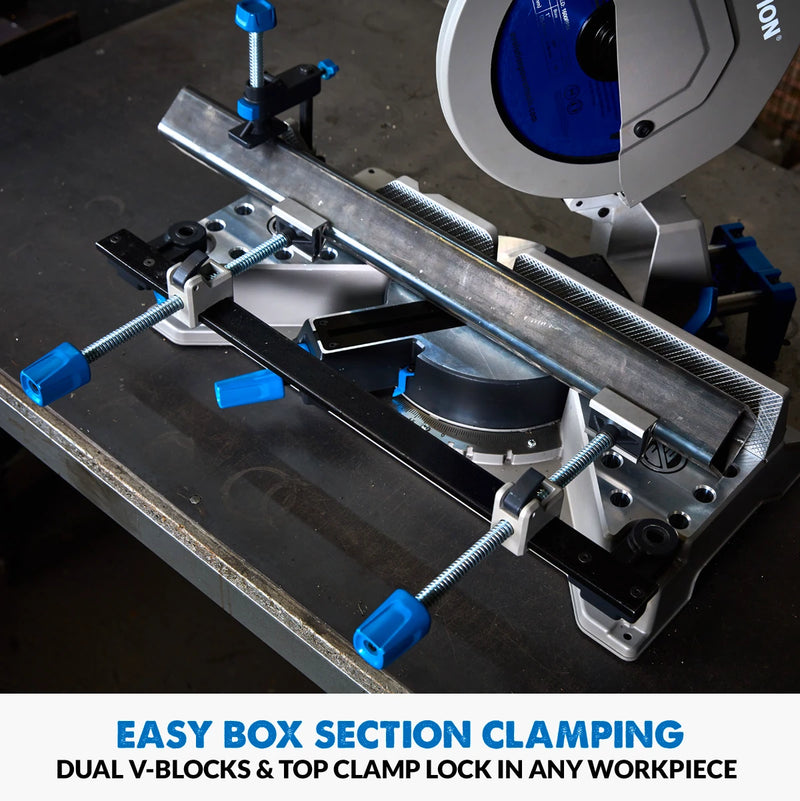

V-Blocks x3

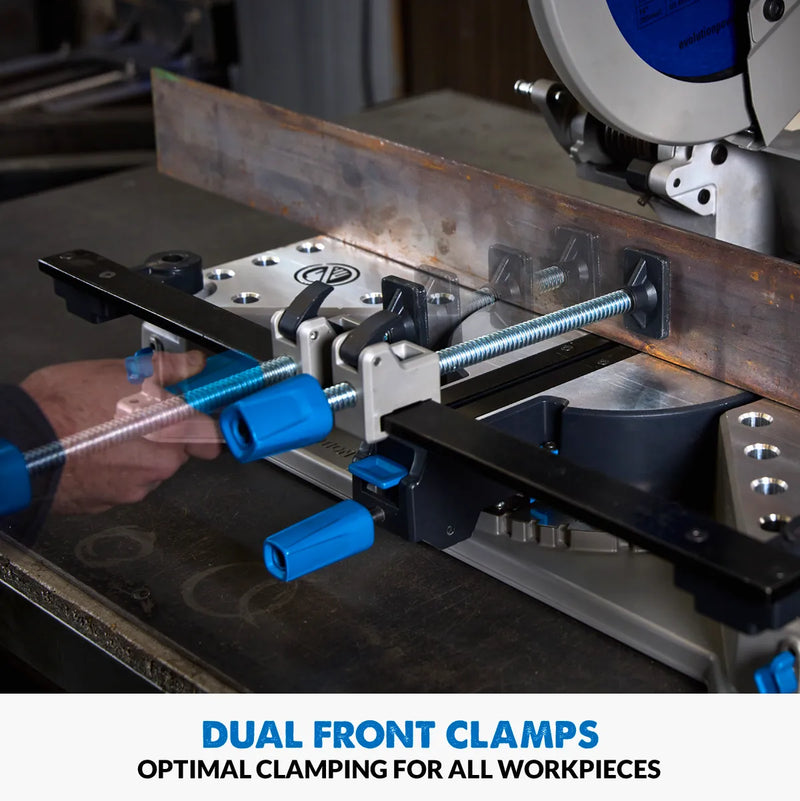

QR Front Clamps x 2

Specifications

Machine Spec
Motor (120V 60Hz): 15A
Speed No Load: 1450 rpm
Max. Bevel (Left): +/- 46°
Cable Length: 10 ft

Blade Spec
Blade Dia.: 14 In.
No. of Teeth: 66
Bore: 1 In.
Kerf: .094 In.

Cutting Capacities
Mild Steel Plate (Max Thickness): 1/2 In.
Stainless Steel Plate (Max Thickness): 13/64 In.
Square Tube at 90° (Mild Steel): 4-3/4 x 4-3/4 In.
Square Tube at 45° ML: 4 x 4 In.
Square Tube at 45° MR: 1-3/4 x 1-3/4 In.
Rectangle Tube at 90° 6-1/2 x 4 In.
Rectangle Tube at 45° 4-1/2 x 1-3/4 In.

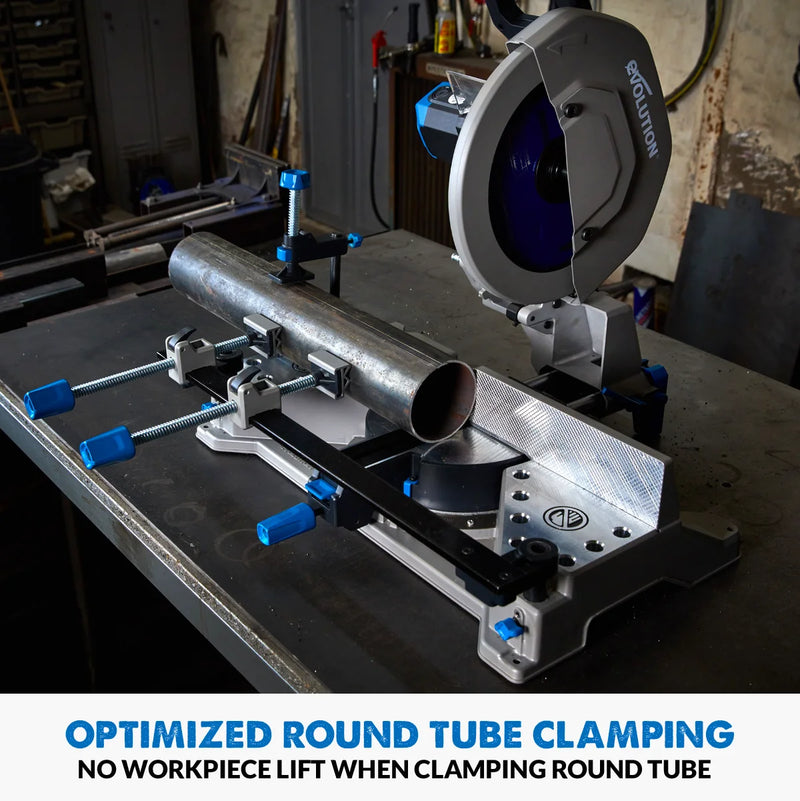

Round Tube at 90°  Ø 4-3/4 In.
Round Tube at 45° (Mild Steel): Ø 4 In.
Minimum Cut Off Piece Length: 5/16 In.

Dimensions
Packaging Dimensions: 18 x 30 x 23 In.
Product Dimensions (assembled): 28.25"L x 26"W x 27.5"H
Product Weight: 77 lbs
Packaged Weight: 88 lbs
