Description
FEATURES

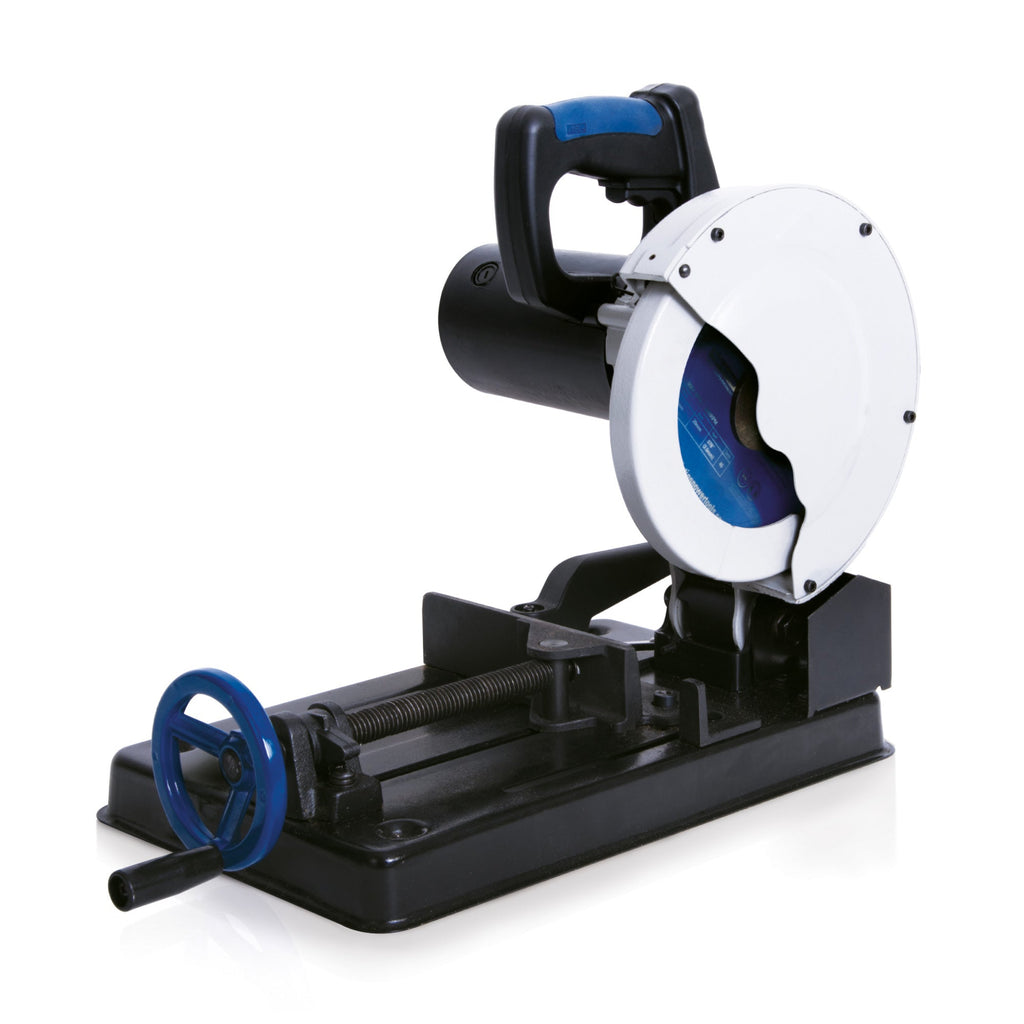

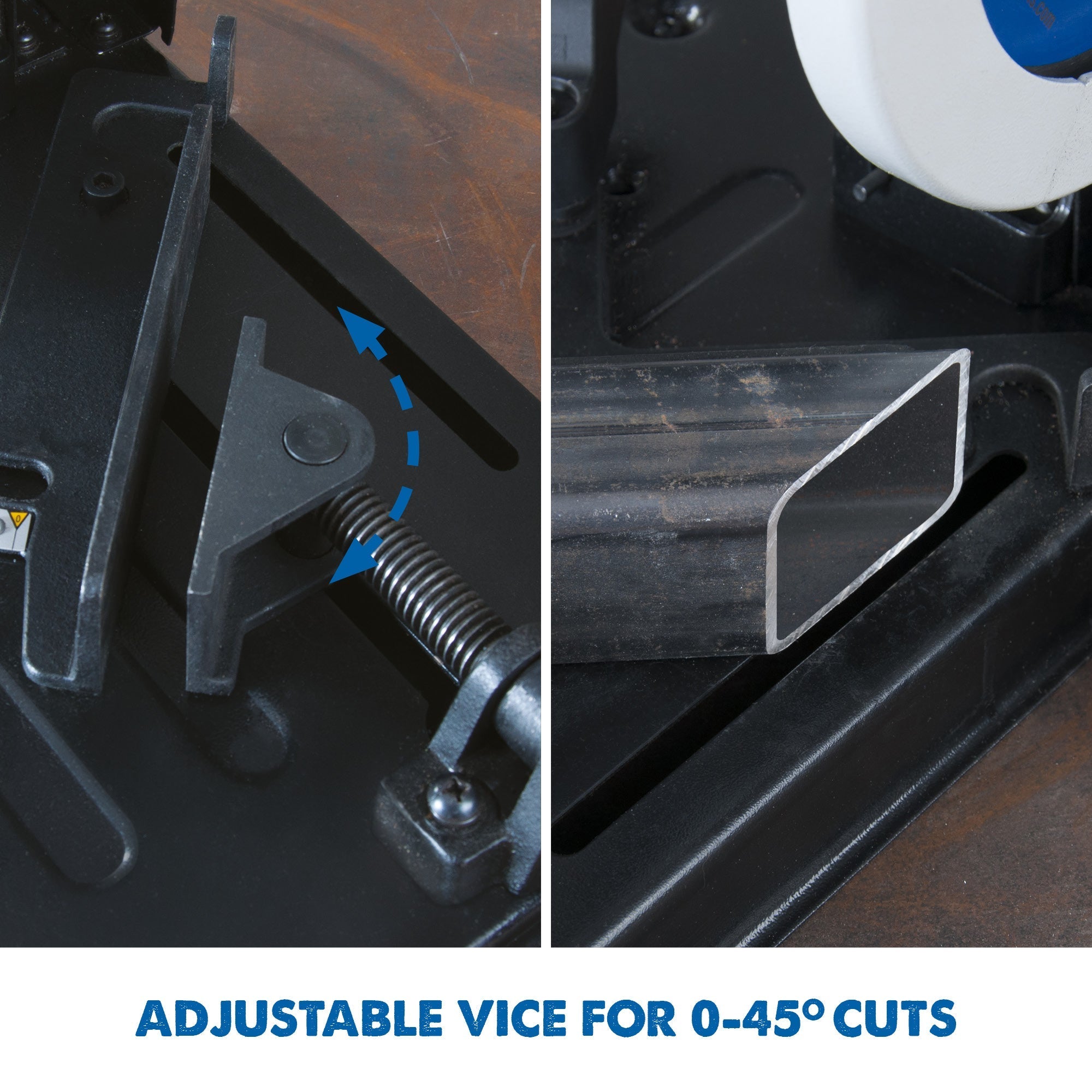

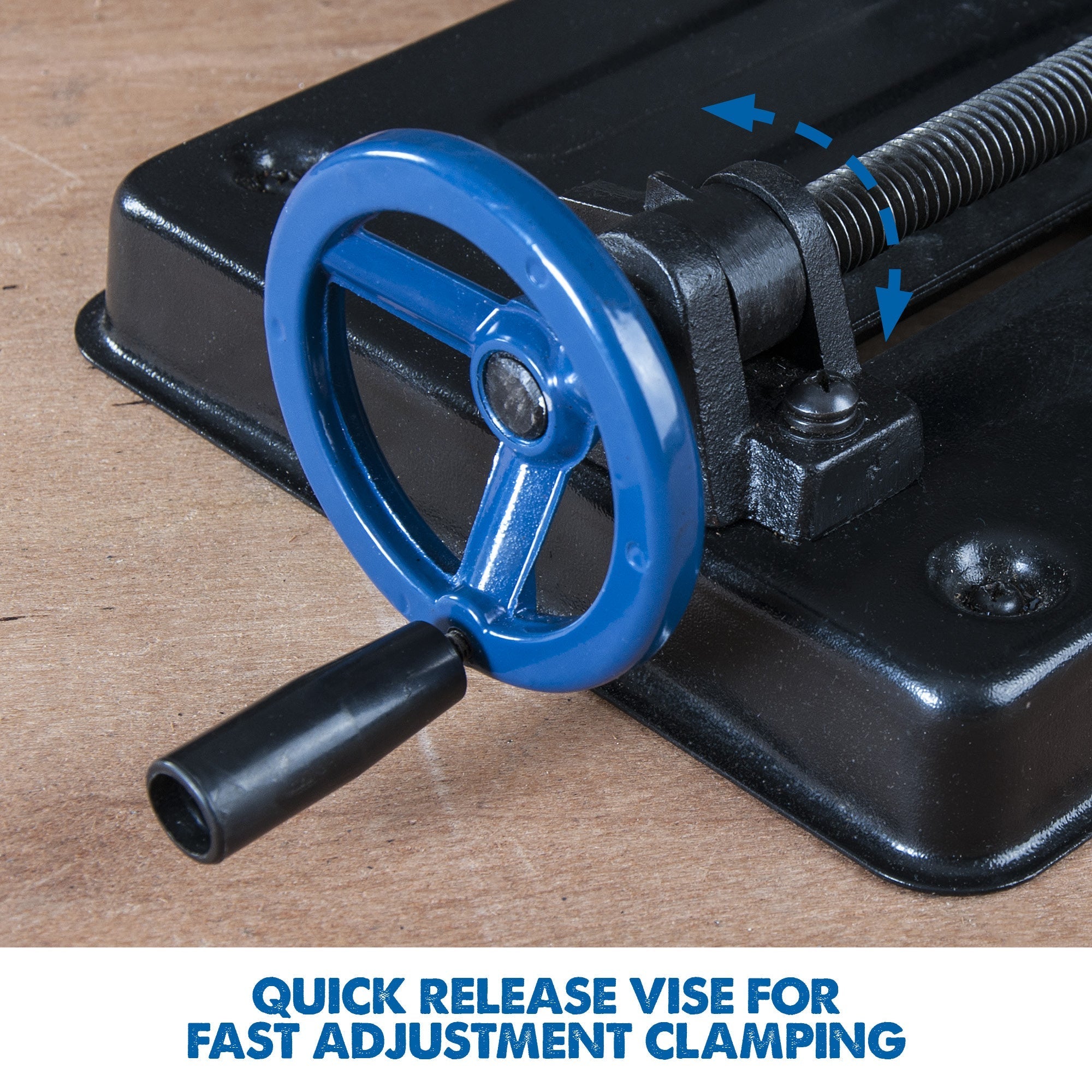

The EVOSAW185 easily cuts mild steel without heat or burrs and virtually no sparks. The quick-release adjustable vise allows for fast and accurate angle cuts from 0-45˚. Ideal for cutting steel plate, square tube, angle iron, pipe, rebar, copper pipe, conduit, and steel studs.- No Heat, No Burrs & Virtually No Sparks.
- No Coolant Required.
- Pressed Steel Base.
- 10A Powerful High Torque Motor.
- 2 In. x 4 In. Cross Cut Capacity.
- 2 In. x 2 In. Square Tube Capacity.
- 2 In. Ø Round Tube Capacity.
- 3 Years Limited Warranty.
SPECIFICATIONS
| Motor (120V 60Hz): | 10 A |
| Speed No Load: | 4200 rpm |
| Max. Bevel (Left): | 45° |
| Cable Length: | 6-9/16 ft |
| Blade Spec: | |
| Blade Dia.: | 7-1/4 In. |
| No. of Teeth: | 40 |
| Arbor: | 20mm |
| Kerf: | .078 In. |

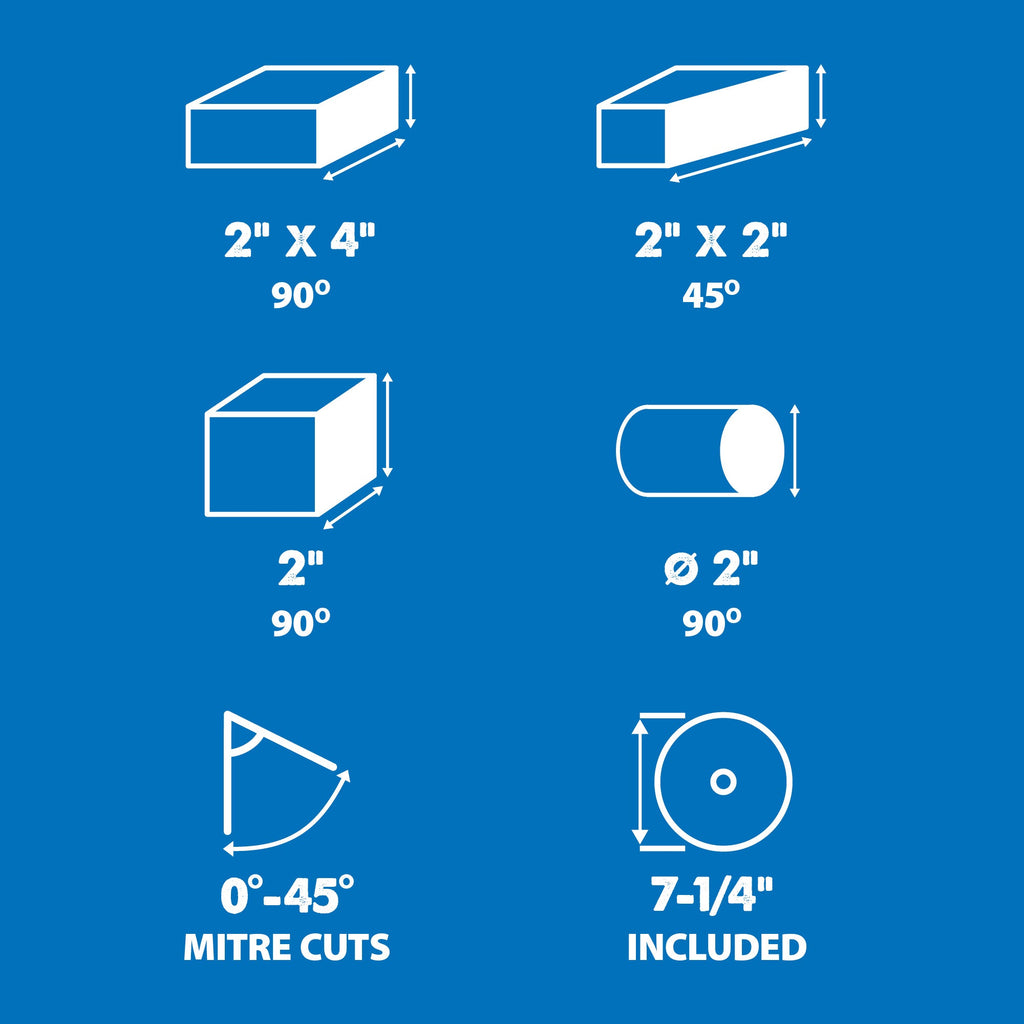

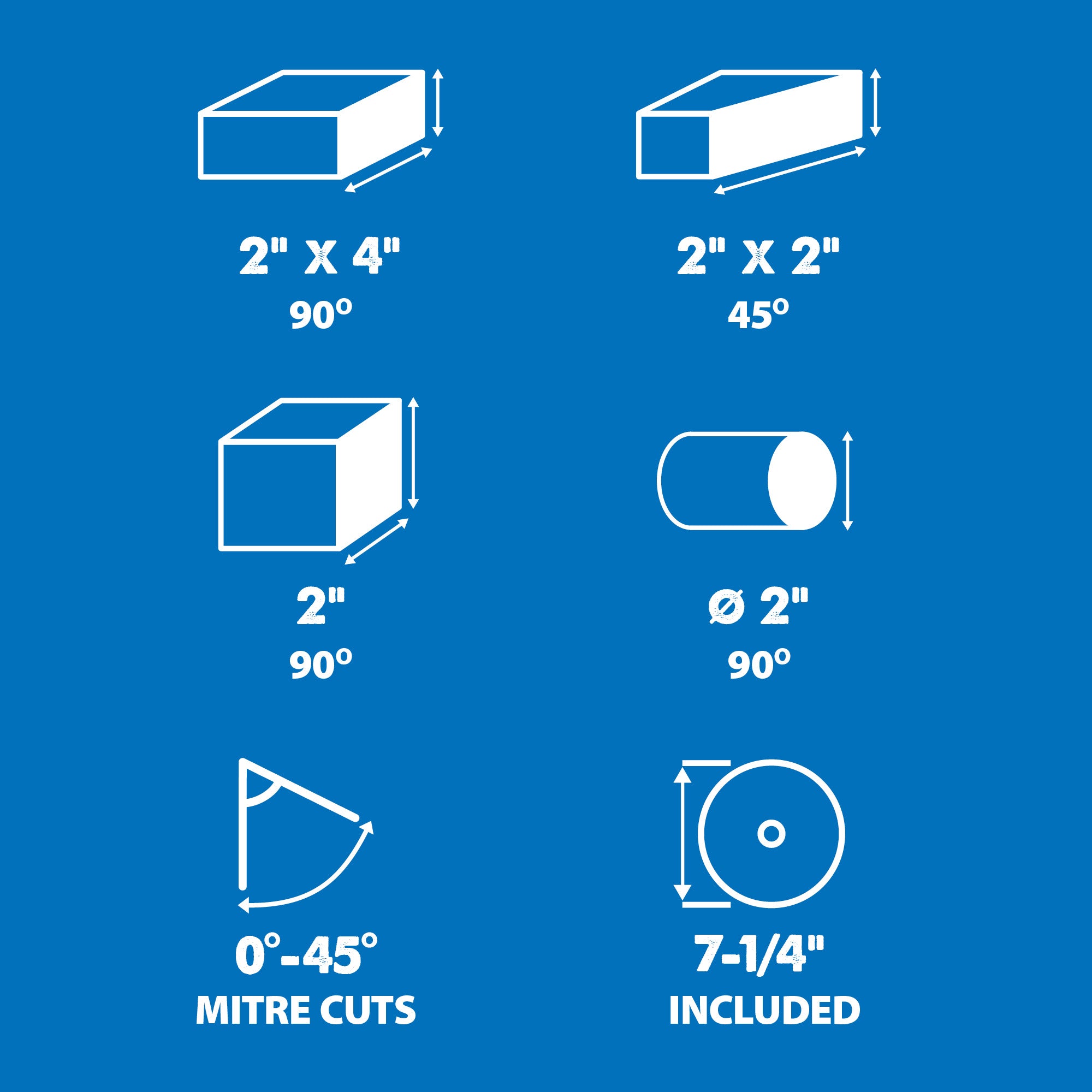

| Cutting Capacities: | |
| Mild Steel Plate (Max Thickness): | 1/4 In. |
| Mild Steel Box Section (Max Wall Thickness): | 1/8 In. |
| Square Tube at 90° (Mild Steel): | 2 In. |
| Square Tube at 45° (Mild Steel): | 2 In. |

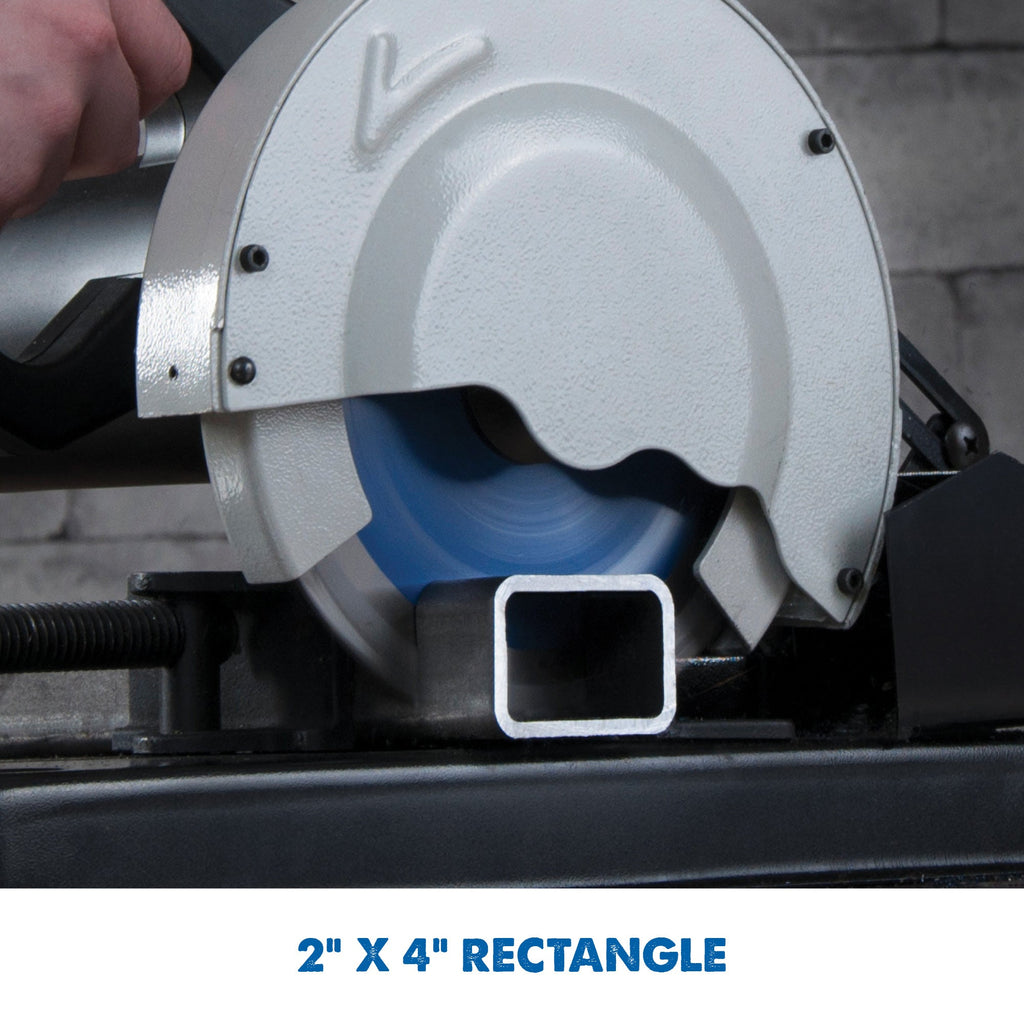

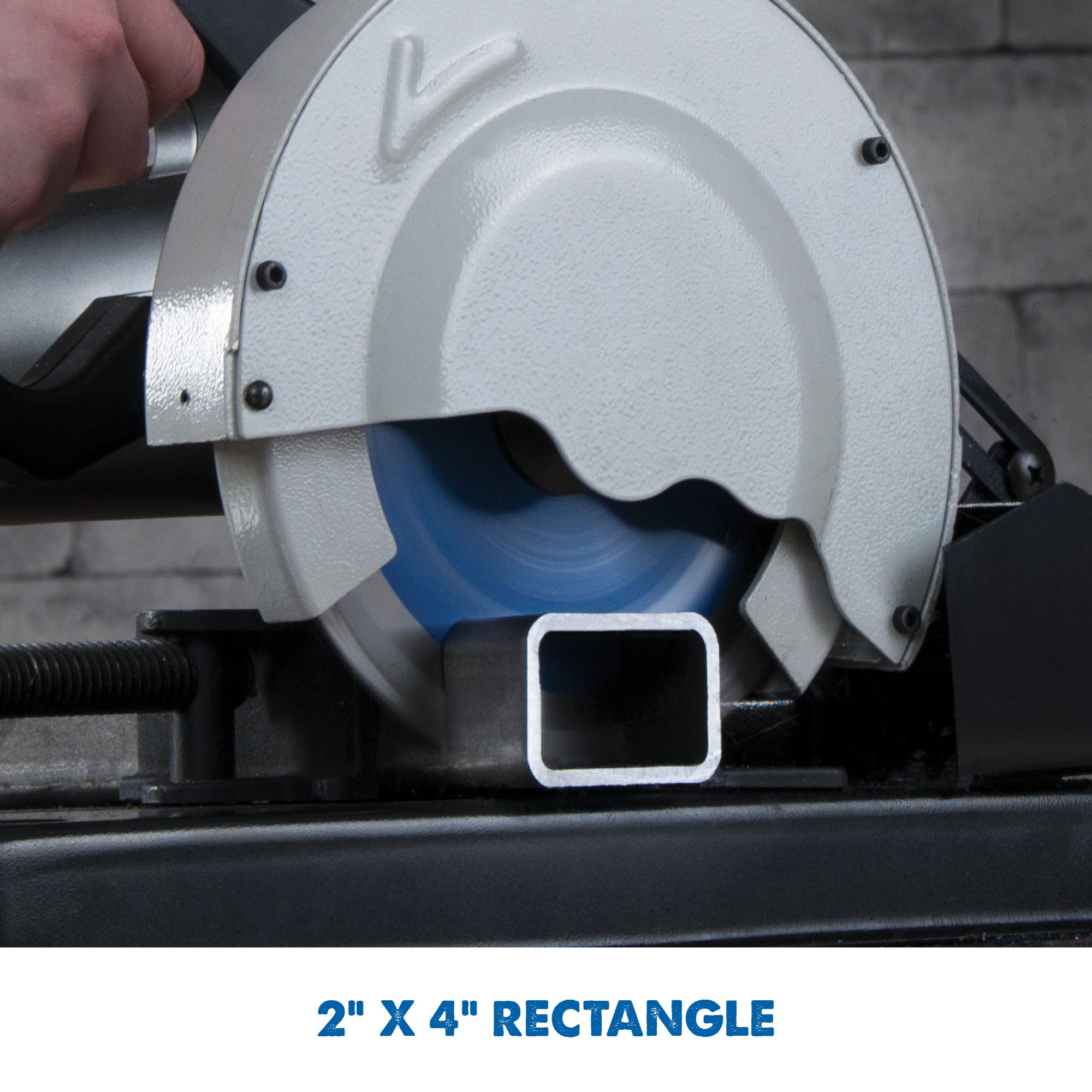

| Rectangle Tube at 90° (Mild Steel): | 2 In. x 4 In. |
| Rectangle Tube at 45° (Mild Steel): | 2 In. x 2 In. |

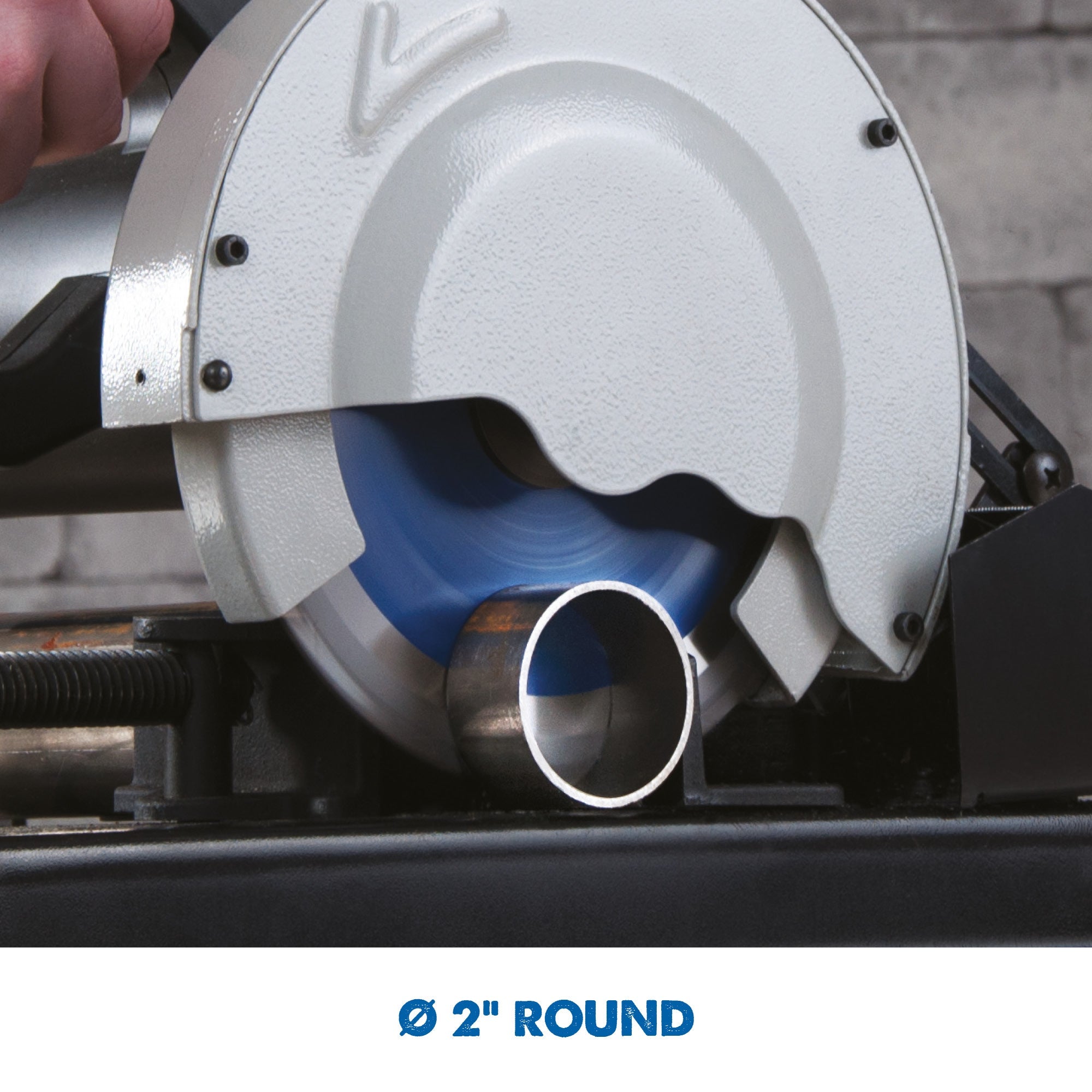

| Round Tube at 90° (Mild Steel): | ø 2 In. |
| Round Tube at 45° (Mild Steel): |
ø 2 In. |
| Items Included: | |
|
ø 2 In. |
|
| 40T Mild Steel TCT Blade | |
| Hex Key 6mm (Vise Adjustment) | |
| Hex Key 5mm (Blade Change) | |
| Hex Key 3mm (Upper Blade Guard) | |
| Dust Extraction Port 36mm | |
| Speed Handle | |
| Spare Motor Brushes (1 set) | |
| Dimensions & Weights: | |
| Product Dimensions: | 20-1/8 In. x 13 In. x 13 In. |
| Packaging Dimensions: | 20-5⁄64 In. x 12-19⁄32 In. x 12-13⁄64 In. |
| Product Weight: | 23 lbs |
