Description
The easy-to-use Syncrowave® 210 provides legacy arc performance that allows you to expand your capabilities with an all-in-one package.
CLICK HERE TO DOWNLOAD SPEC SHEET
Why Buy 2 When 1 Will Do?
While other multiprocess units lack the ability to TIG weld aluminum, your Syncrowave 210 has AC TIG. Also through the spool gun accessory you can MIG weld to fill those gaps or increase your travel speed.
5 Amp TIG Capability
Allows users to weld thinner materials than other machines in this category.
Auto-Set™
A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters. Simply set the wire diameter, set the material thickness, and start welding!
6010 Stick Electrode Capability
When the competition snuffs out the Syncrowave 210 burns on, even with difficult to run electrodes used for less than ideal conditions. Increase the DIG setting for stiffer, more penetrating electrodes like E6010.
Low Power Draw
Inverter-based power source provides full welding output from 240 V while drawing less than 30 amps.
Easy-to-Use
1. Turn power on. 2. Select Process: AC TIG, DC TIG, DC Stick or MIG Spool Gun. 3. Set amperage or voltage based on material thickness. Then weld! It’s as easy as 1, 2, 3.
Use it on 120 AND 240 Volt Input Power
Using Miller’s Auto-Line™ technology, the Multi-Voltage Plug (MVP™) allows you to connect to common 120 or 240 V power receptacles without the use of any tools – simply chose the plug that fits the receptacle and connect it to the power cord.
Built-in Running Gear
No need to buy a cart, your Syncrowave 210 gives you maximum portability with an EZ-Change™ low cylinder rack and built-in storage space to better manage your accessories and easily transport everything you need for your project.
Fan-on-Demand™
Allows the fan to run up to 36% less to reduce the amount of contaminants pulled though the machine to help extend the life of the product.
14-Pin Controlled Operator Alternatives
The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
Pro-Set™ Feature
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.

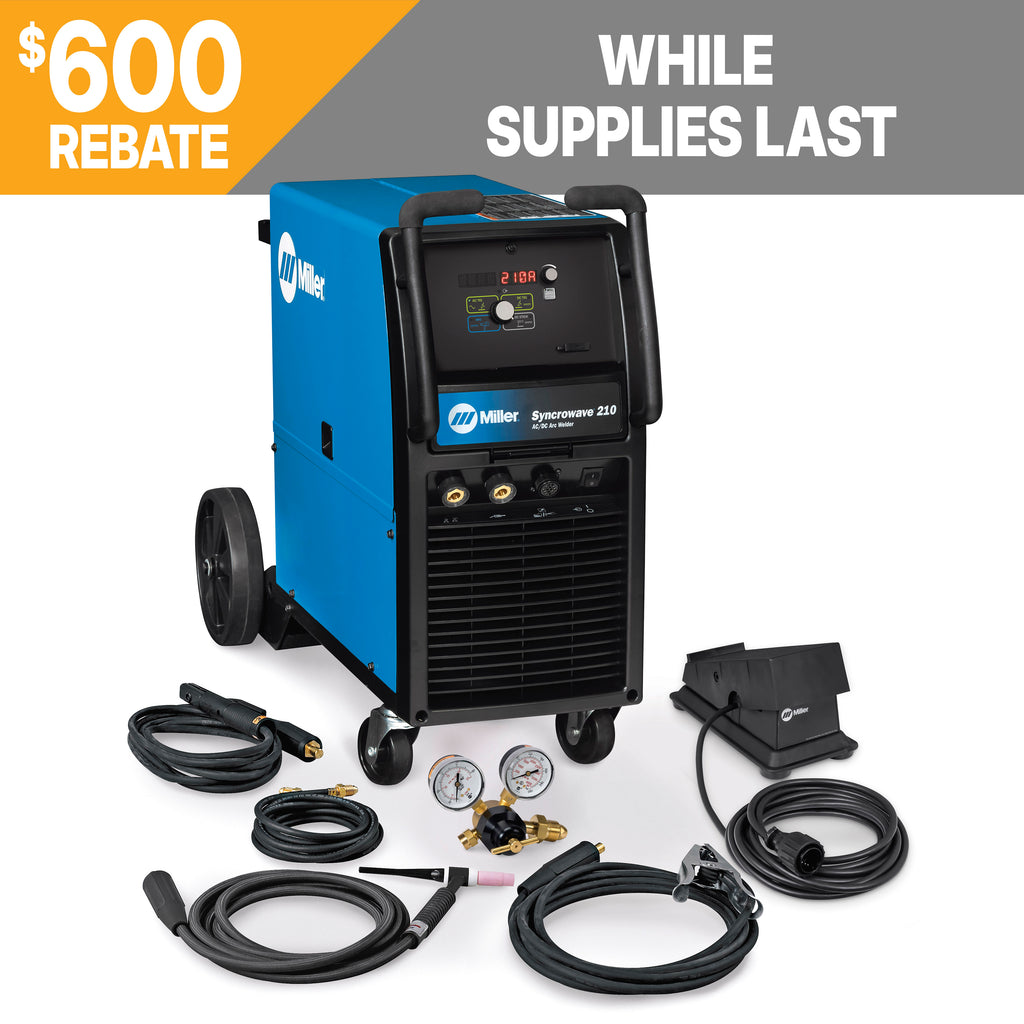

INCLUDES
• Syncrowave 210 power source
• 10 ft (3 m) primary cord
• 2 MVP plugs for 115 V and 230 V
• 12 ft (3.8 m) 150 A TIG torch with Dinse connector
• 12 ft (3.8 m) work cable with clamp and Dinse connector
• Electrode holder with Dinse connector
• RFCS-14 foot control with 20 ft (6 m) cord
• Regulator/flow gauge and gas hose
• Factory-installed running gear with EZ-Change Low Cylinder Rack
Processes
Stick (SMAW)
TIG (GTAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
General Specifications
| Title | Syncrowave® 210 TIG Package |
|---|---|
| Applications | Aluminum Welding Welding Projects |
| Industries | Racing Farm and Ranch Manufacturing Construction and Fabrication |
| Material Thickness | Aluminum 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm) Steel 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | AC / DC |
| Max Open Circuit Voltage | 47 VDC |
| Amperage Min | 5 A |
| Amperage Max | 210 A |
| Portability | Running Gear / Cart (Standard) |
| Weld Output | CC |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Net Width | 18.5 in |
| Net Height | 31.5 in |
| Net Length | 43 in |
| Net Weight | 133.5 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
