The Multimatic 220 AC/DC is the only machine in its class that offers users the ability to switch welding gas, polarity and welding process automatically while recalling the last MIG or TIG settings.
CLICK HERE TO DOWNLOAD SPEC SHEET
All in One
Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
QuickTech™
Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time. Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes. Automatically recalls the settings from the last process used.
14-Pin Controlled Operator Alternatives
The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
Weighing Only 56 Pounds
The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
Dependable Arc Starts
Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
6010 Stick Electrode Capability
Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
Auto-Set™ Technology
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Generator Compatible
Will be able to operate and provide full output when powered by an engine-driven welder with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.
Multi-voltage plug (MVP™)
Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.
Pro-Set™ Feature
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.

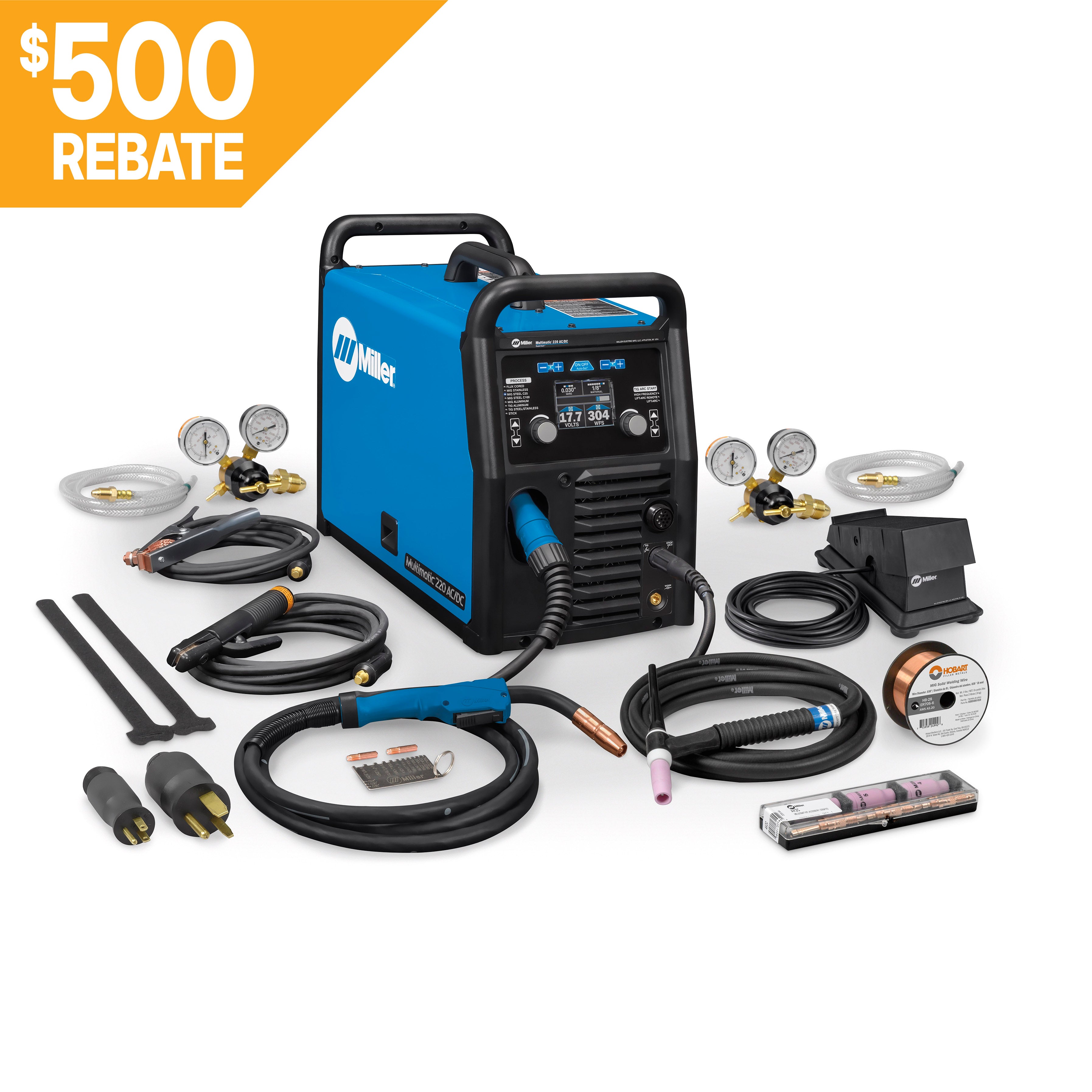

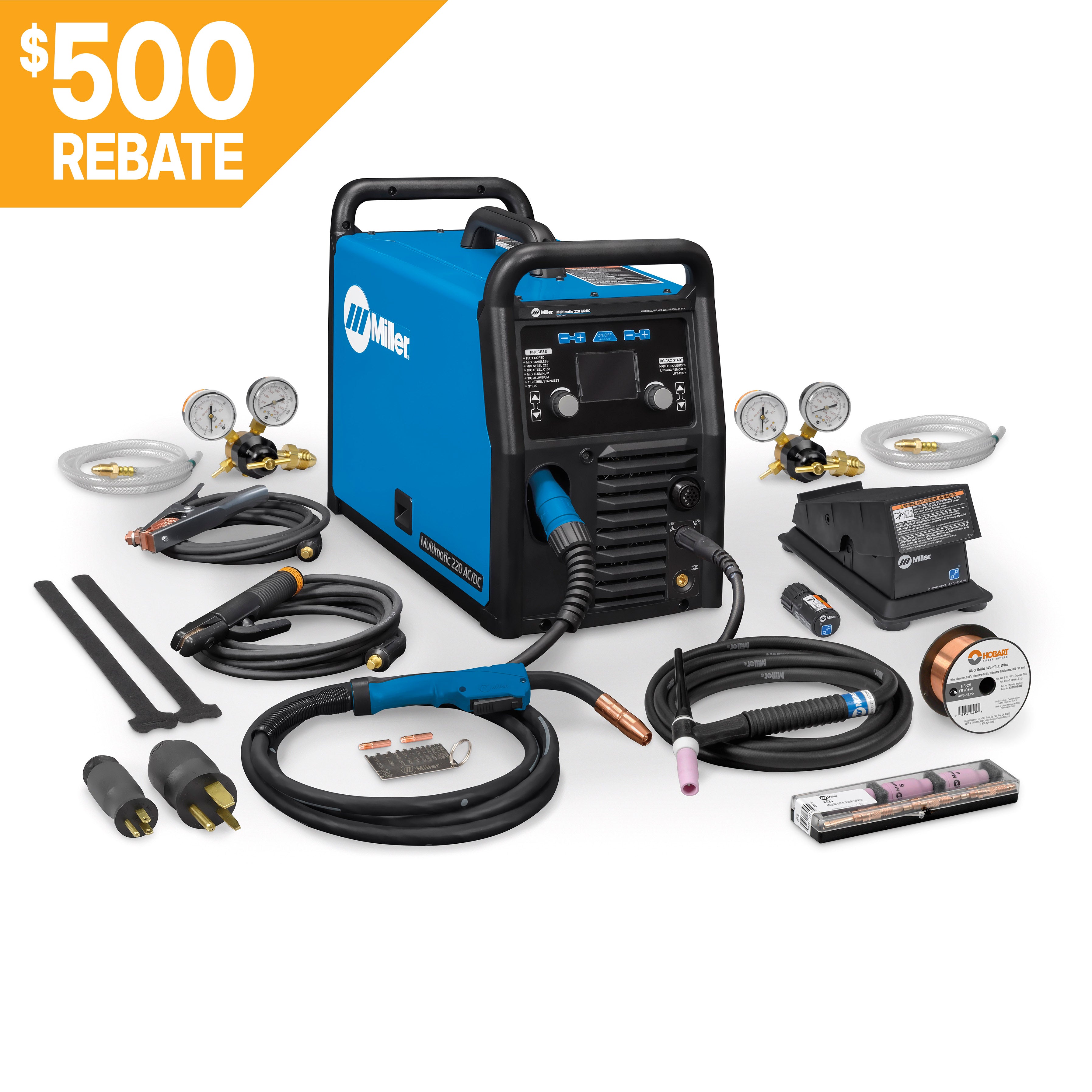

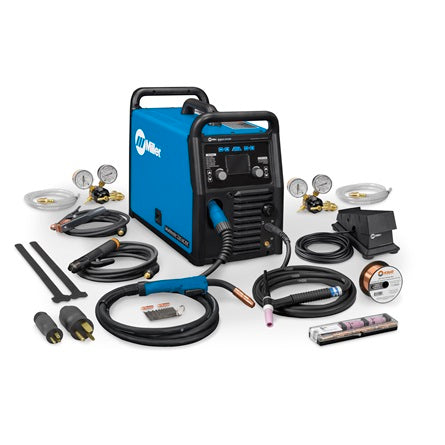

INCLUDES
• Power source (907757)
• 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V
• 10 ft. (3 m) MDX 100 MIG gun and cable assembly (Accepts Miller MDX Consumables)
• 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
• 12.5 ft. (3.8 m) Weldcraft A-150 (WP-17) TIG torch with 25 mm Dinse-style connector
• RFCS-14 HD foot control with 20 ft. (6 m) cord
• 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
• Two flow gauge regulators and gas hoses for argon and AR/CO2 mix
• Hobart spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• AK2C TIG torch accessory kit
• Material thickness gauge (229895)
• Hook-and-loop cord wraps
