Description
FEATURES
- Heavy-duty cast aluminum base with integrated wear plate & bench mounting holes.

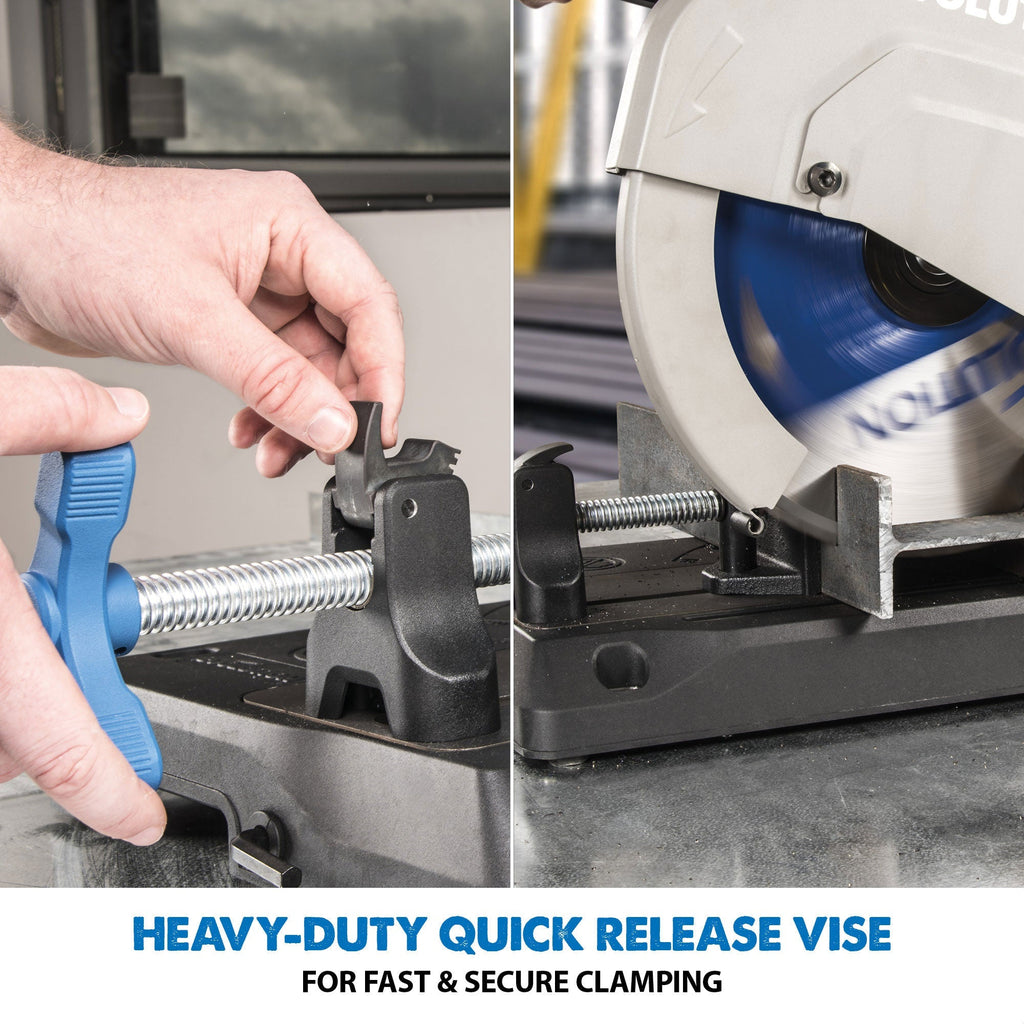

- Quick-release vice with robust square-threaded rod for fast & secure clamping.
- Accurate & durable cast steel vice with 0° - 45° miter capacity & locking pin.
- Compact design with a head lock down pin & carry handle for easy transportation.
- Chip collection tray for a cleaner, safer working environment.
- Ergonomic, ambidextrous trigger with comfortable textured grip.
- Attachable ‘v’ shape block included for secure clamping of round & square tube.

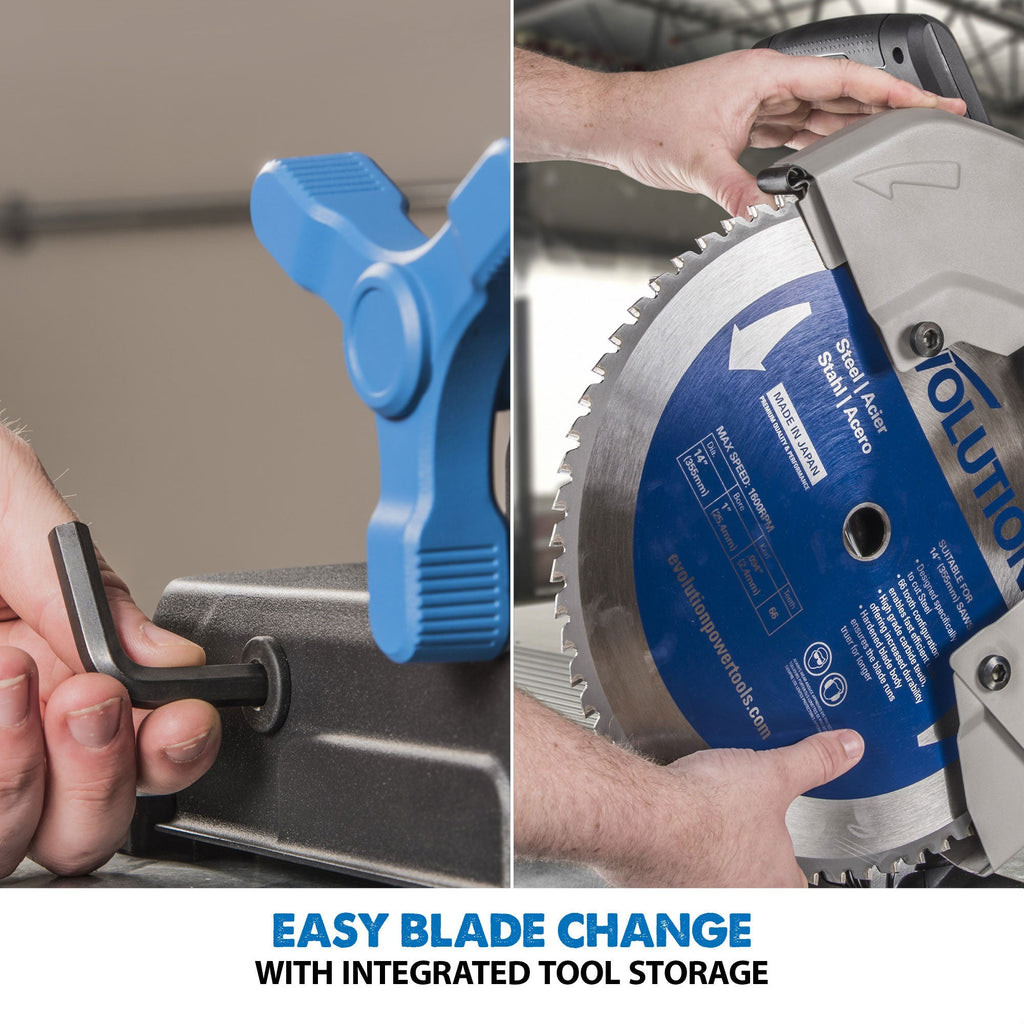

- Easy blade change with integrated tool storage.
SPECIFICATIONS
Machine Spec| Motor (120V 60Hz): | 15A |
| Speed No Load: | 1450 rpm |
| Max. Bevel (Left): | 45° |
| Cable Length: | 10 ft |
| Blade Dia.: | 14 In. (Supplied with a 14” (355mm) blade. Capable of fitting a 15” (380mm) mild steel cutting blade) |
| No. of Teeth: | 66 |
| Bore: | 1 In. |
| Kerf: | .094 In. |
| Mild Steel Plate (Max Thickness): | 1/2 In. |
| Stainless Steel Plate (Max Thickness): | 13/64 In. |

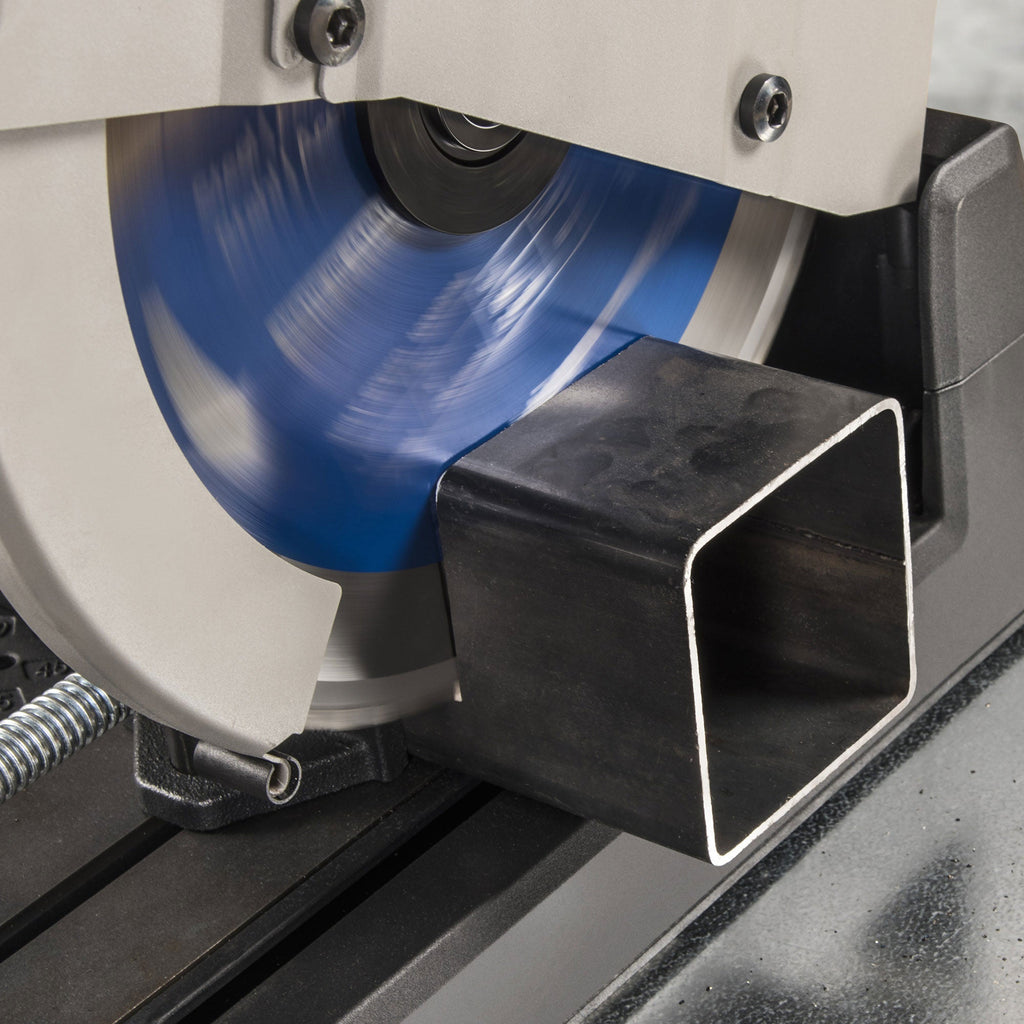

| Square Tube at 90° (Mild Steel): | 5 x 5 In. |
| Square Tube at 45° (Mild Steel): | 3-1/2 x 3-1/2 In. |
| Rectangle Tube at 90° (Mild Steel): | 3-3/4 x 7-1/8 In. |
| Rectangle Tube at 45° (Mild Steel): | 3-1/8 x 4-3/8 In. |

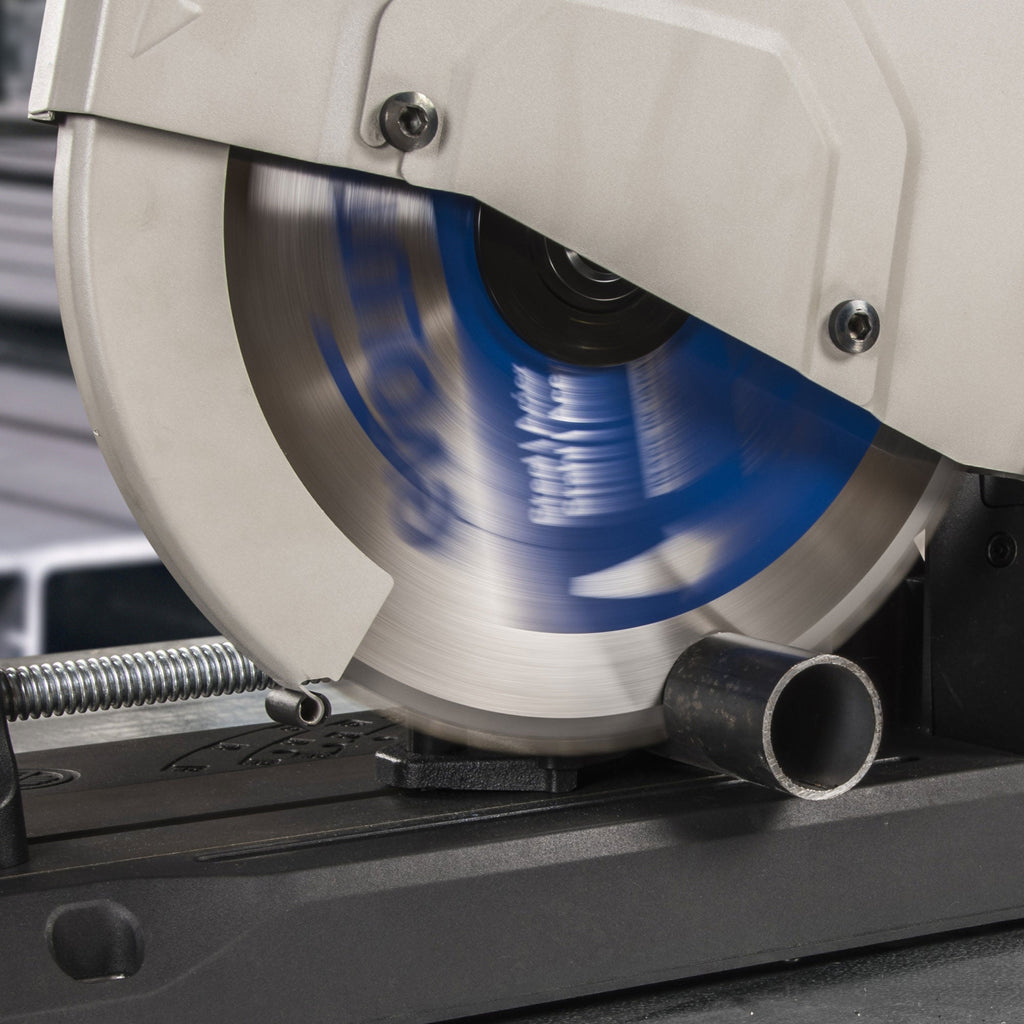

| Round Tube at 90° (Mild Steel): | 5-1/8 In. |
| Round Tube at 45° (Mild Steel): | 4-1/8 In. |
| Minimum Cut Off Piece Length: | 5/16 In. |
| 66 Tooth Mild Steel TCT Blade |
| Hex Key 5/16" (8mm) (Blade Change) |
| V-Block |
