Description

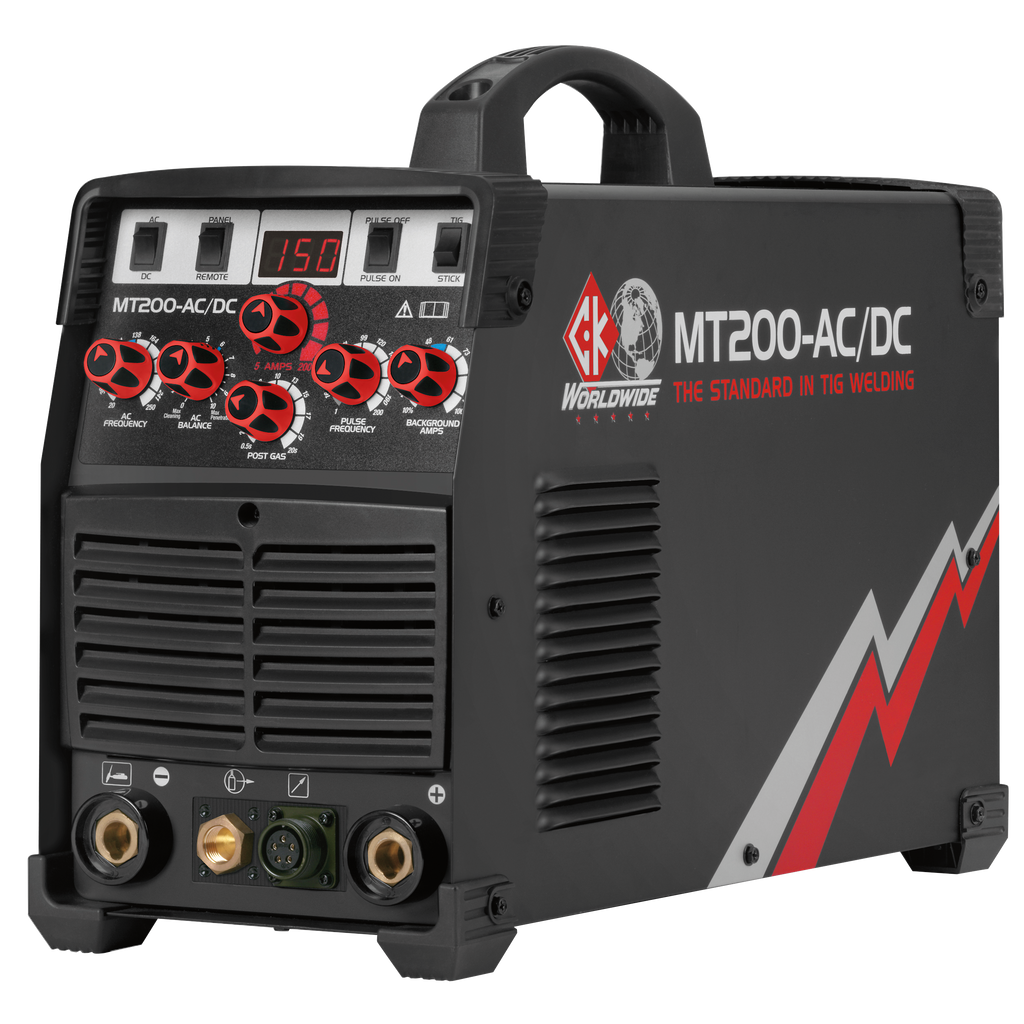

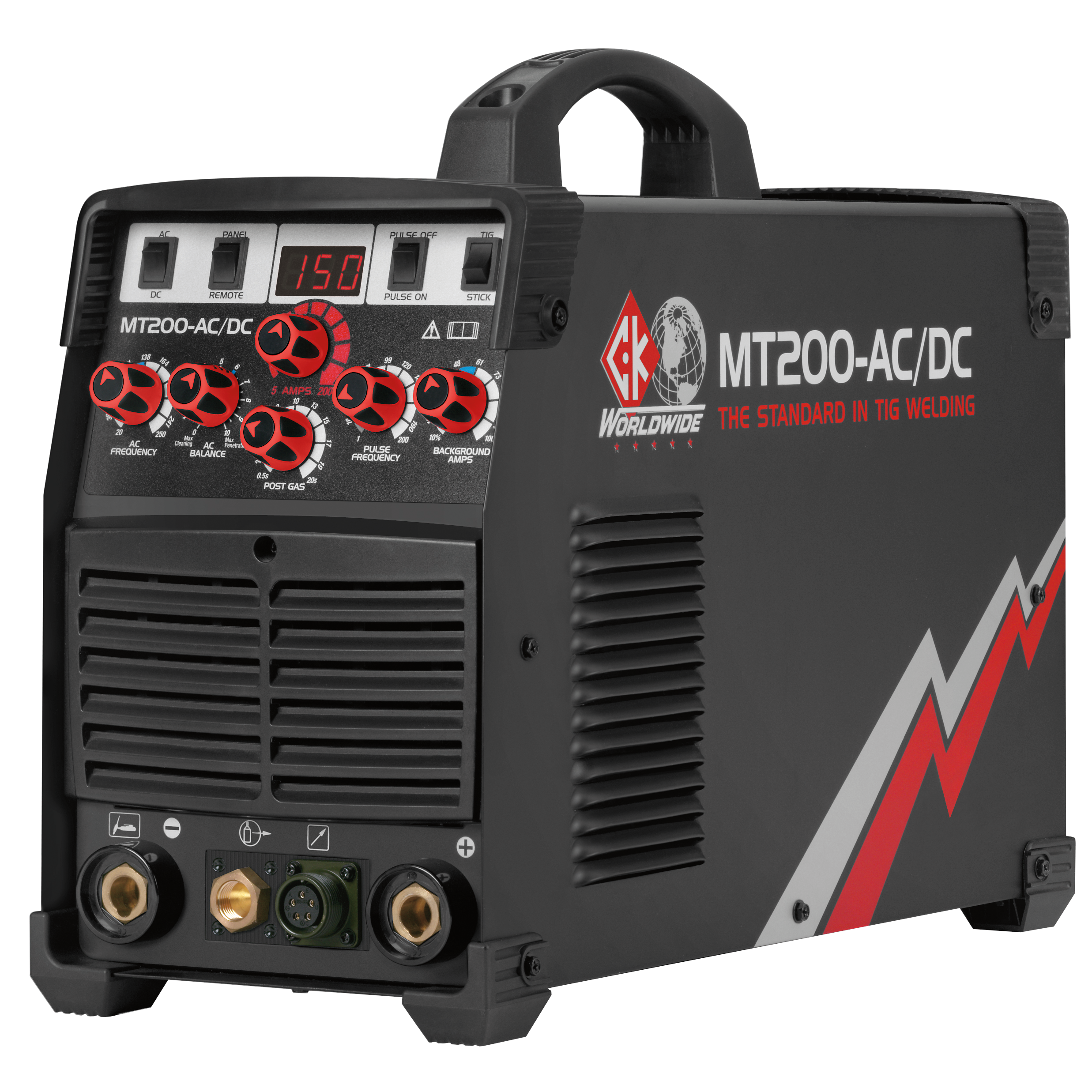

The MT200-AC/DC is an innovative TIG welding machine developed by TIG welding experts, for TIG welding experts. Provides the ability to quickly and efficiently adapt to dynamic welding situations, while maintaining the quality of experience you have come to expect from CK Worldwide.
FEATURES
- 5 Amp Arc Starts
- Compact Portable Design
- Dual Voltage (115V - 220V)

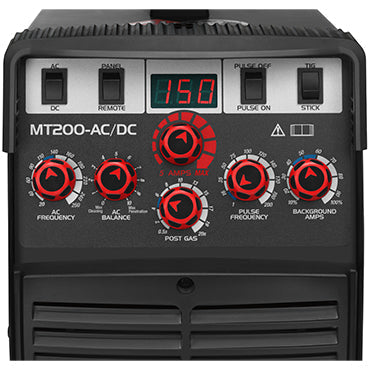

- Easy-to-Use Interface
- Square-Wave Technology
- 3 Year Warranty

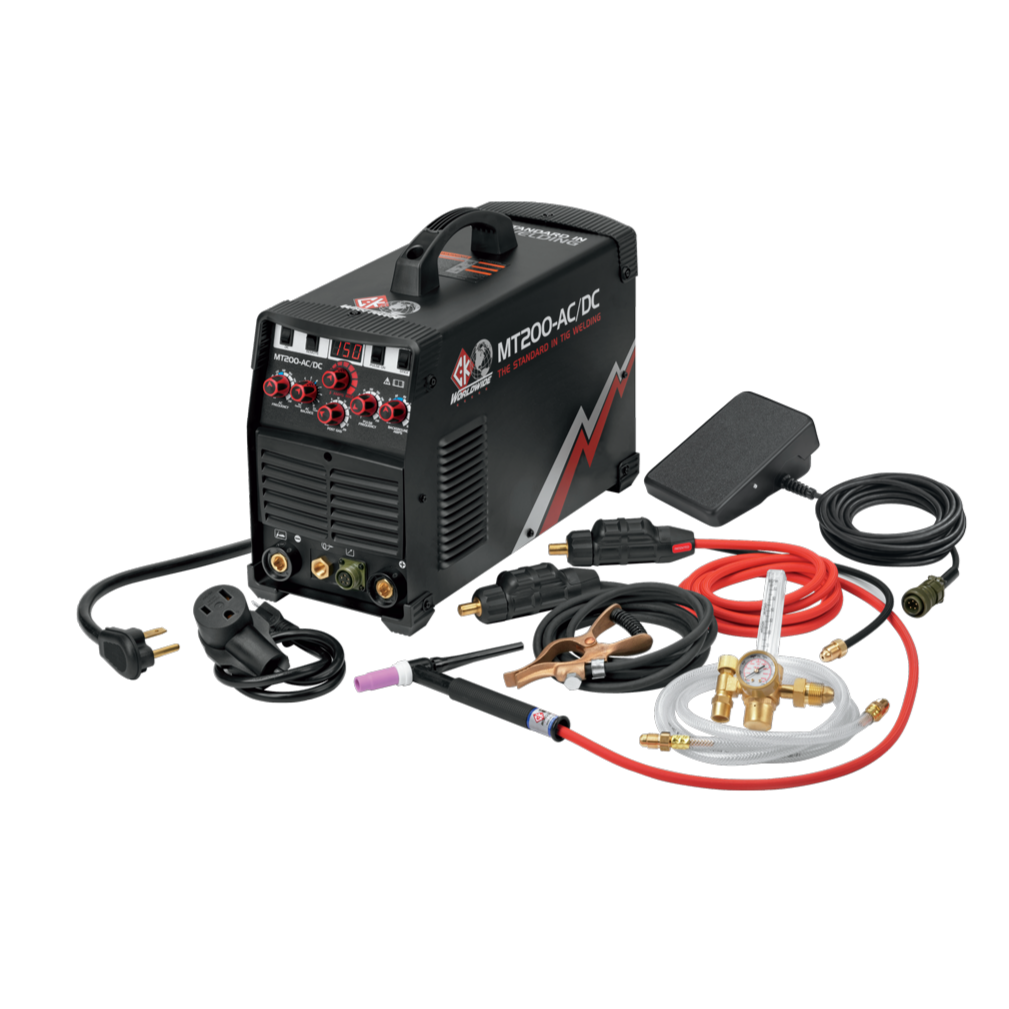

INCLUDES
- MT200-AC/DC TIG Power Source

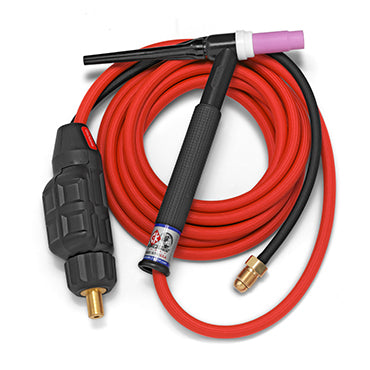

- CK17 Flex-Head Torch with 12.5' (3.8m) Super Flex Cable - CK17-12-RSF FX
- Dinse Connector - SL2-35
- Series 3 Accessories/Consumable Kit - AK-3

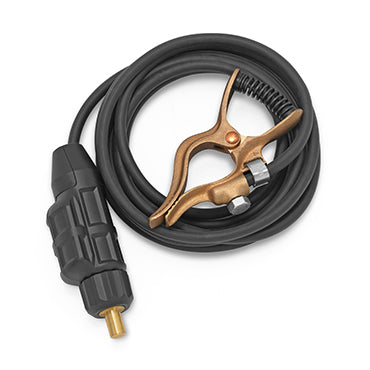

- Ground Clamp with 12.5' Cable

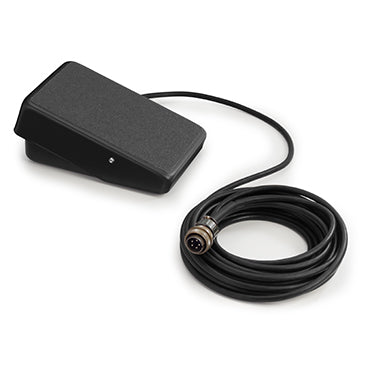

- Foot Pedal Amperage Control

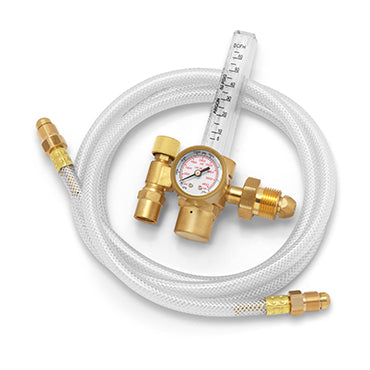

- Single-Flow Regulator
- 6' Gas Hose Hose - ARH-6
- 220V to 115V Power Adapter
| Input Voltage: | 115VAC or 220VAC: +/- 15%, 50/60Hz |
| Input Current (15A/20A) | 115V: 21 Amps / 28.6 Amps, 220V: 34 Amps |
| Output Current Range GTAW | 115V: 5-140 Amps, 220V: 5-200 Amps |
| Output Current Range SWAW | 115V: 10-110 Amps, 220V: 10-160 Amps |
|
Rate Output GTAW |
115V: 15A @ 95A/13.8V, 60% Duty Cycle 20A @ 115A/14.6V, 50% Duty Cycle 220V: 160A @ 26.4V, 30% Duty Cycle |
|
Rated Output SMAW |
115V: 15A @ 60A/22.4V, 60% Duty Cycle 20A @ 115A/14.6V, 50% Duty Cycle 220V: 160A @ 26.4V, 30% Duty Cycle |
| Max. Open Circuit Volts | 61 Volts |
| Gas Pre-Flow | 0.5 seconds |
| Gas Post-Flow | 0.5 - 20 seconds |
| AC Frequency | 20 - 250 Hz |
| Pulse Frequency | 1 - 200 Hz |
| Pulse Width | 50% |
| Base Current | 10 - 100% |
| Arc Start | High Frequency |
| Dimensions | 15" x 8.5" x 20" |
| Weight | 32 pounds |
