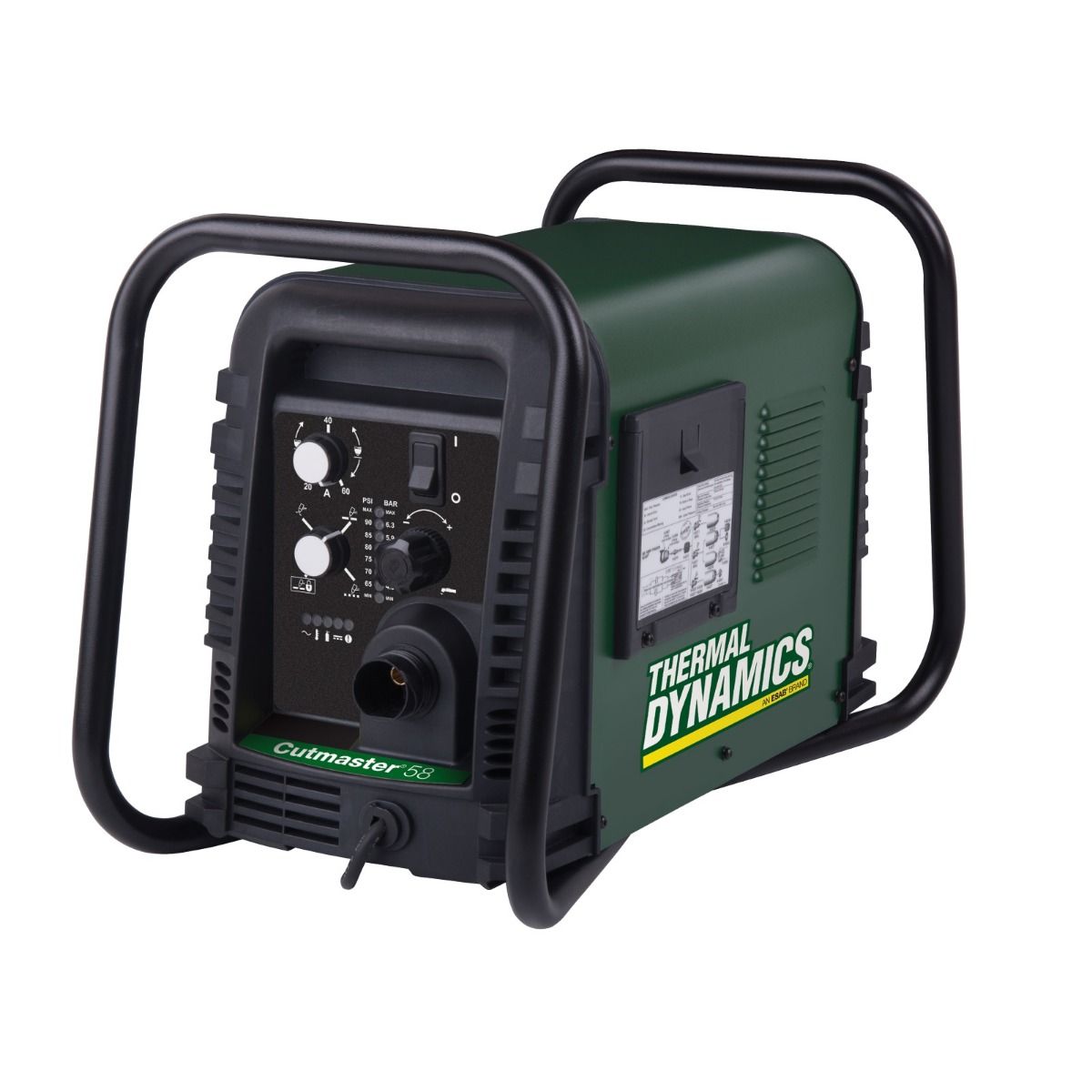

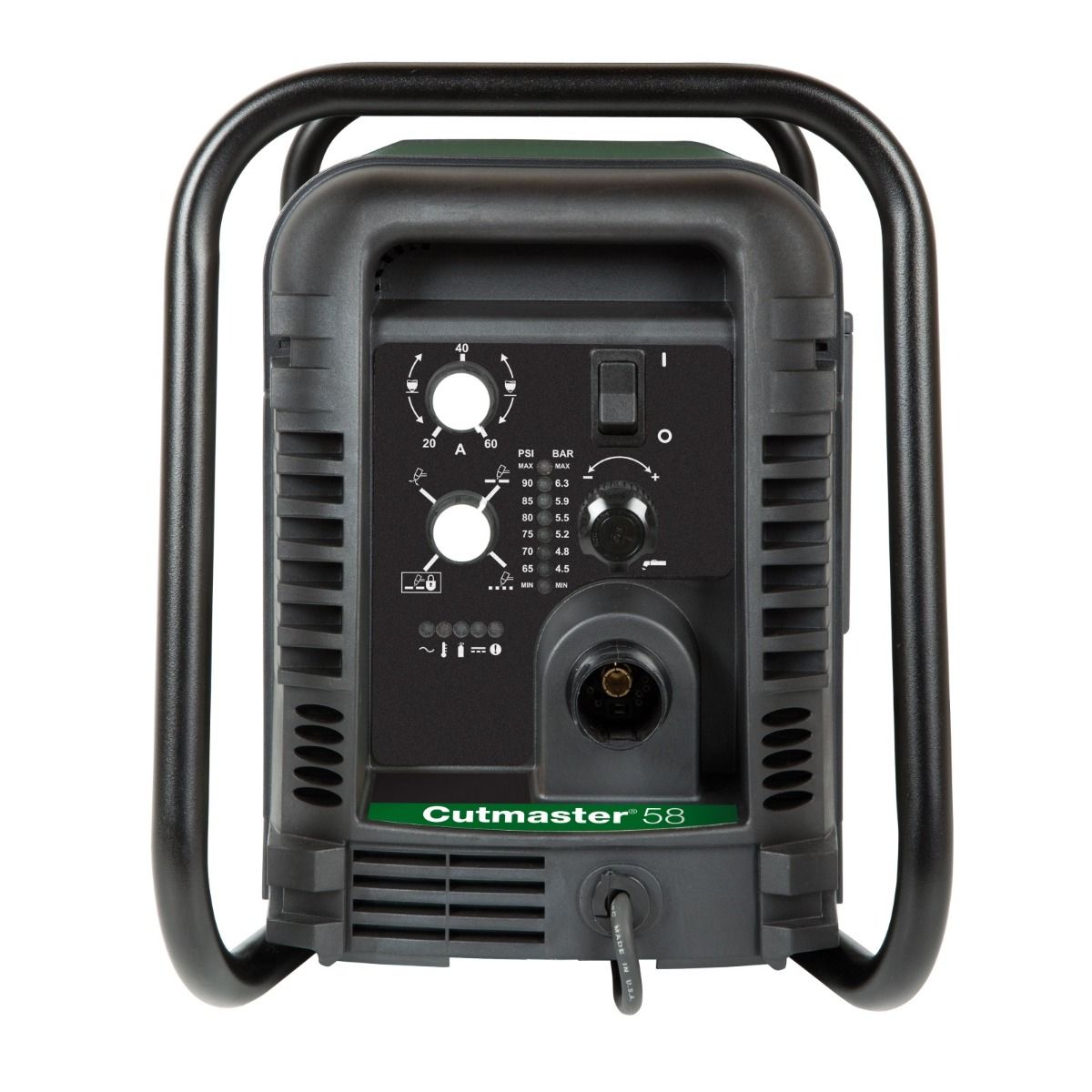

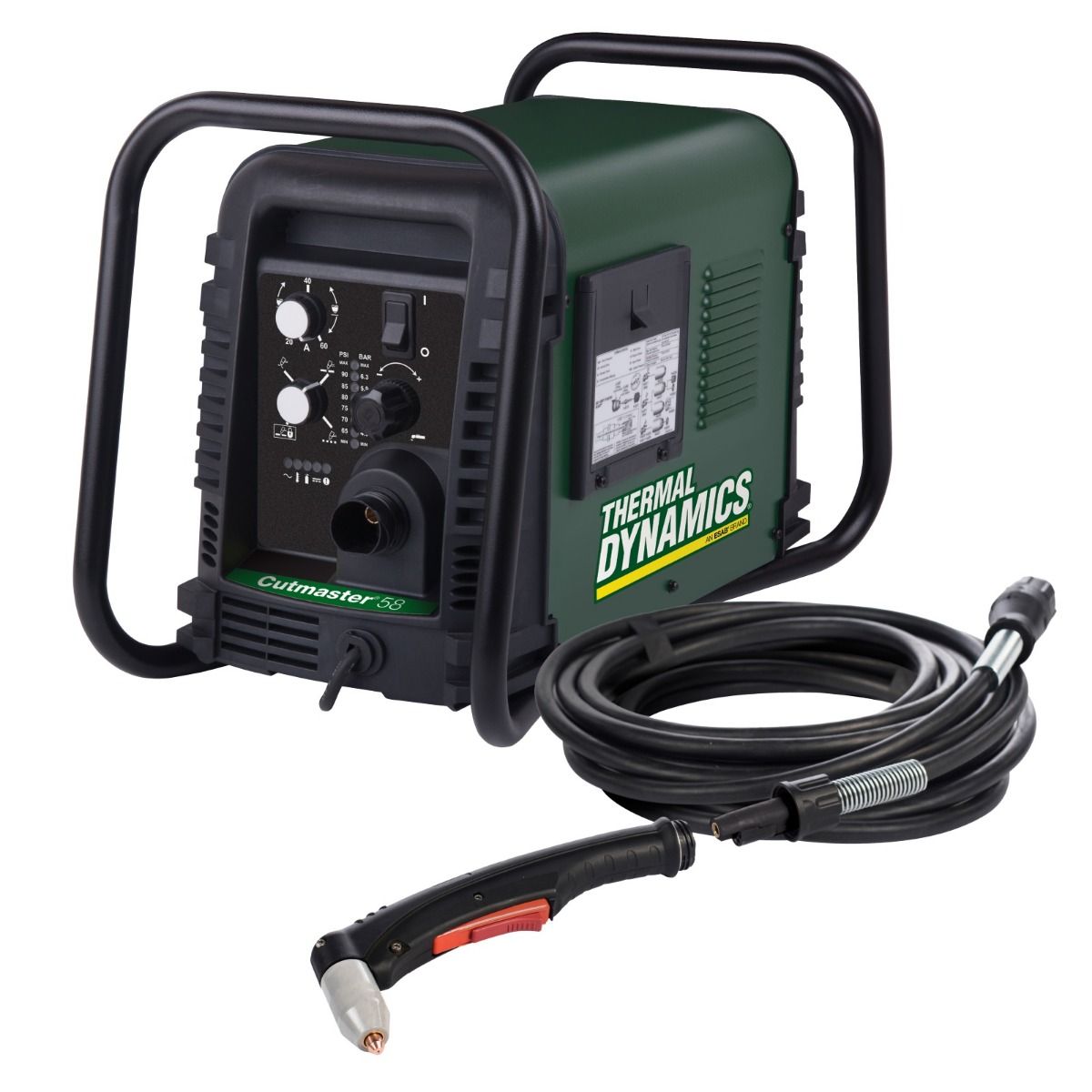

Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1
Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1
Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1
Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1
Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1
Roll over image to zoom in Click on image to zoom
Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1

Thermal Dynamics Cutmaster 58 Plasma Cutter, 20ft 208-230V - 1-5830-1

Thermal Dynamics
Price:
$2,399.00 $2,999.00

Description

Description

The Cutmaster 58 is a plasma cutter that performs true to its cut capacity of 1/2". This gives you the peace of mind that you need when figuring out whether or not to upgrade to a larger machine.

  • Recommended cut capacity of 1/2" with maximum sever capacity of 1 1/8"

  • 100% Duty Cycle at 30A

  • True Guard roll bar makes it easy to transport and provides protection against wear and tear

  • Gas optimizer technology precisely regulates air pressure, ensuring premium cut quality and performance

  • Front Panel LEDs indicate status conditions for maximum efficiency.

  • Industry-leading 4-year handle-to-handle warranty on power source along with a 1-year Torch warranty.

Specifications

Click to view to the entire spec sheet.

Thermal Dynamics Cutmaster 58 Spec Sheet and Data

Included with Product

  • Power source

  • TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability.

  • Color Coded LEDs indicate pressure status and setup errors.

  • The Industry's Only 60 Amp Drag Tip.

  • Convenient storage compartment for spare and consumable parts

  • Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.

  • 20 ft. (6.1m) Lead

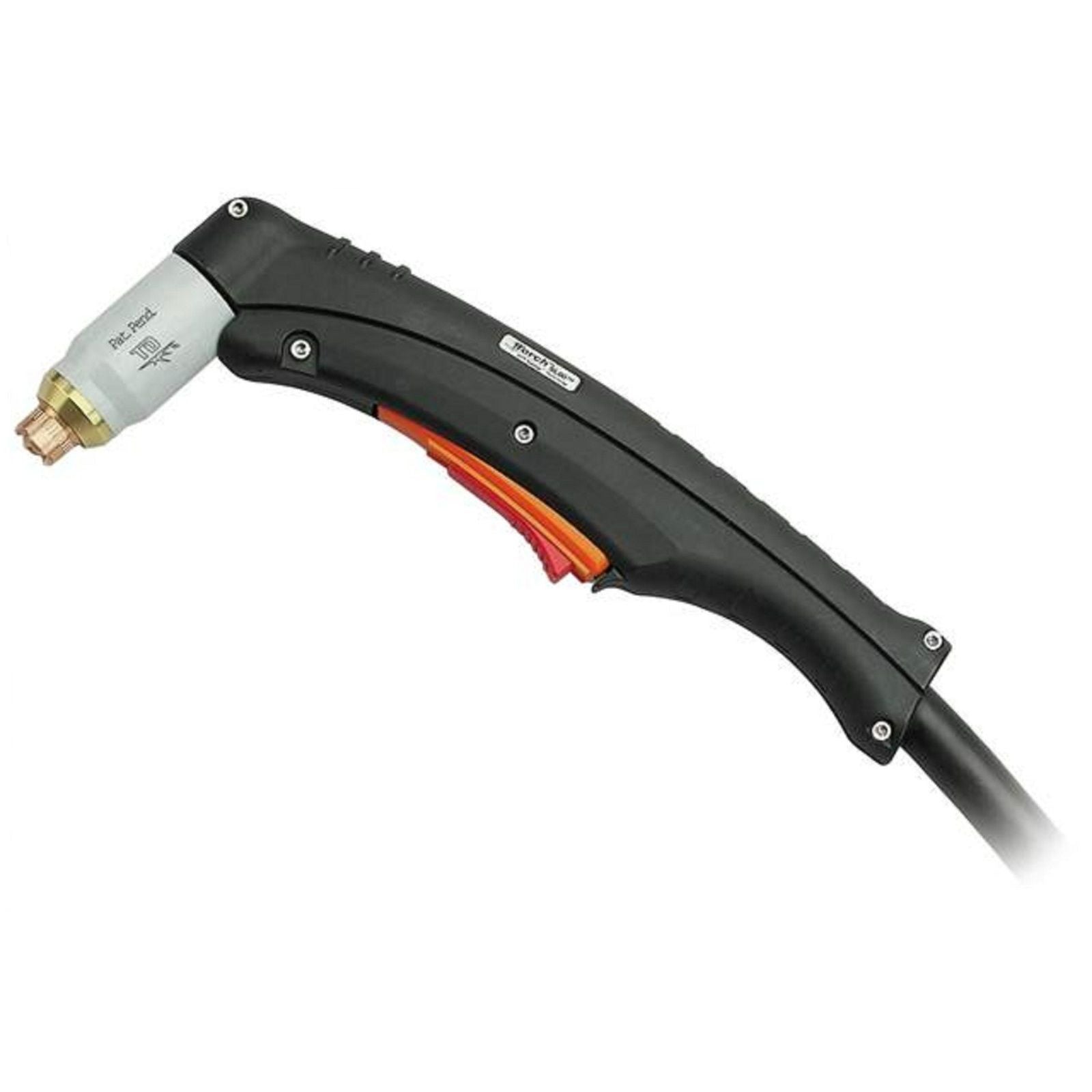

  • 1Torch SL60QD, 75 deg. Head

  • 10 ft. (3.0m) Input Power Cable 1Ph with 230V (NEMA 6-50P) plug

  • Work Cable and Clamp

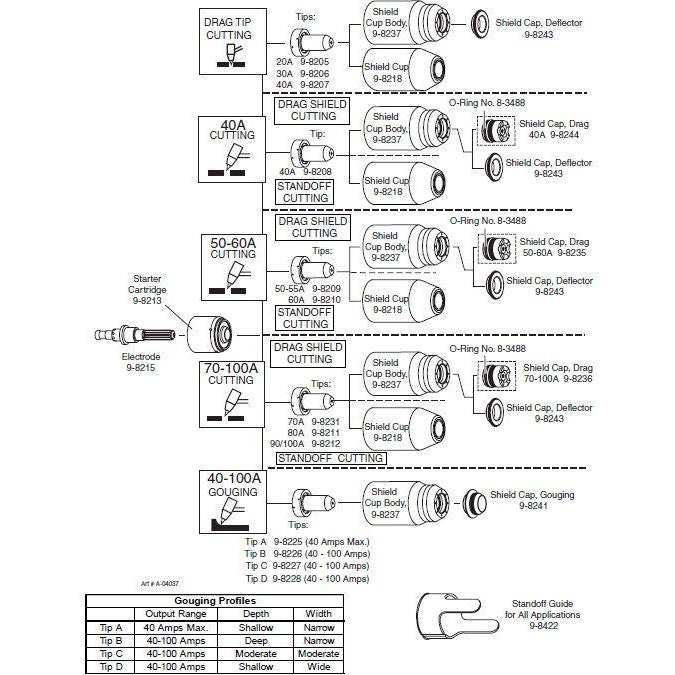

  • Spare Parts Kit

  • Operating Manual

  • 4 Year Warranty
